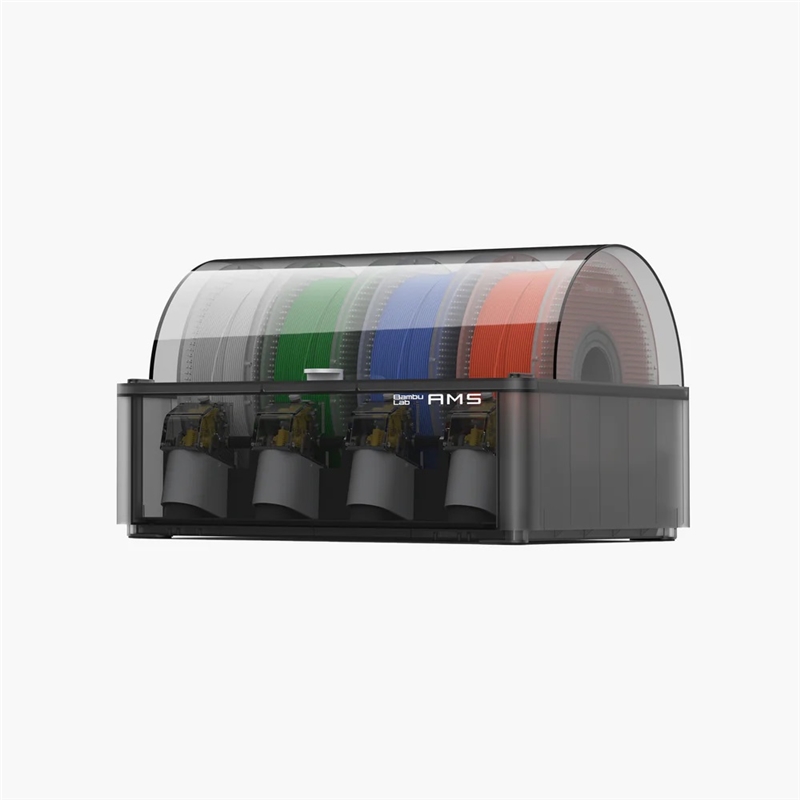

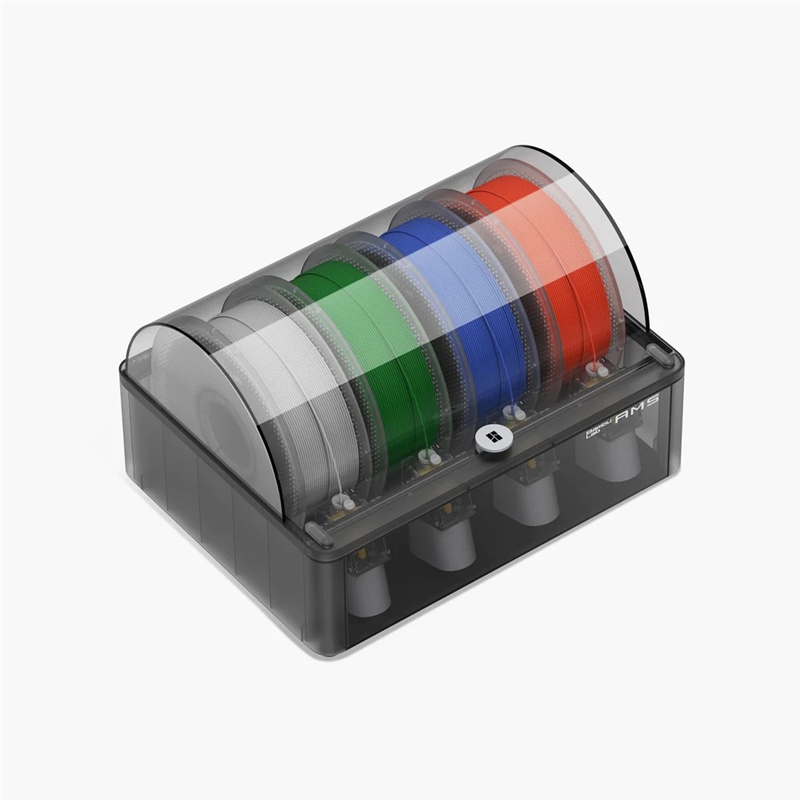

Bambu Lab AMS Automatic Material System
Please click here to see the unboxing article
The Bambu Lab AMS is an intelligent system that can be linked to the nozzle module to ensure a stable feed and automatic filaments change. The tension of the filaments can be detected and the feed rate can be actively adjusted. Refer to RFID technology, the Bambu Lab AMS recognises the loaded filaments and automatically sets the most appropriate print parameters. (Only the original filaments can be identified)
．The Bambu Lab AMS is equipped with a humidity sensor and sealed housing to keep the filaments dry and ready for use, which is particularly helpful for hygroscopic engineering grade materials such as nylon and polycarbonate.
．The Bambu Lab AMS consists of 4 filament slots and up to 4 AMS can be installed in parallel, minimising the difficulty of removing supports due to the availability of multiple filament slots and the ability to use easy removable support materials or dissolvable filaments.
．Each AMS unit comes with 4 Reusable Spools (1 high temperature spool and 3 low temperature spools).
Remarks
．AMS support the width with 50-68mm, diameter with around 200mm spool. If you purchase a single AMS unit, it will come with a filament buffer. And If you plan to connect multiple AMS units together, you will need to purchase the AMS Hub.
．Please try to avoid using soft materials such as TPE, TPU or PVA with the AMS because it might get stuck. Luminous, particle-infused or carbon fibre, glass fibre, etc. threads may change and break inside the AMS, or be abrasive and wear out the internal parts.
．Please try to avoid using cardboard spools with the AMS. The rollers that control the rotation of the bobbin in the AMS, are executed by friction between the edge of the plastic bobbin and the rubber rollers. Cardboard bobbins provide very little friction and may tear or warp at the edges, and therefore may slip or jam, causing the AMS to malfunction or be damaged.
| Material |
ABS |
| Package Dimensions |
445x365x320mm |
| Product Dimension |
368x283x224mm |
| Weight |
5kg |
| Package Includes |
Quantity |
| ABS Reusable Spool |
3 |
| (PC+ABS)Reusable Spool |
1 |
| Filament Buffer |
1 |
| 4pin Bus Cable |
1 |
| 6pin Bus Cable |
1 |
| M3x23 Screw |
3 |
| PTFE Tube(370mm, 550mm) |
1 |
| Instruction Manual |
1 |
