| Dimensions |
330 x 240 x 300 mm（13 x 9.4 x 11.8 inches） |
Assembled dimensions
|
695 x 605 x 1287 mm（27.5 x 24 x 51 inches） |
| Print technology |
Fused Deposition Modeling (FDM) |
| Compatible filament diameter |
2.85 mm |
| Weight |
120 kg（265 lbs） |
| |
|
| Maximum power output |
600 W |
| Weight |
Printer：56.5 kg（125 lbs）
Material Station：1.9 kg（4.2 lbs） |
| Layer resolution |
0.25 mm nozzles：150 - 60 microns
0.4 mm nozzles：200 - 20 microns
0.6 mm nozzles：300 - 20 microns
0.8 mm nozzles：600 - 20 microns |
| XYZ resolution |
6.9、6.9、2.5 microns |
| Feeder type |

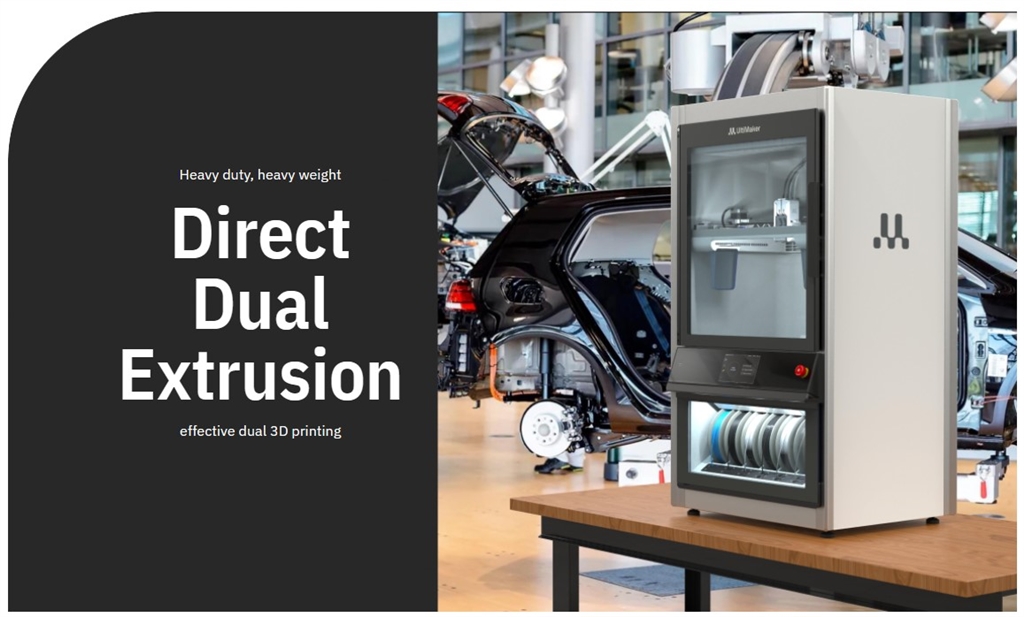

Dual-extrusion, direct drive print head and swappable print cores |
| Display |

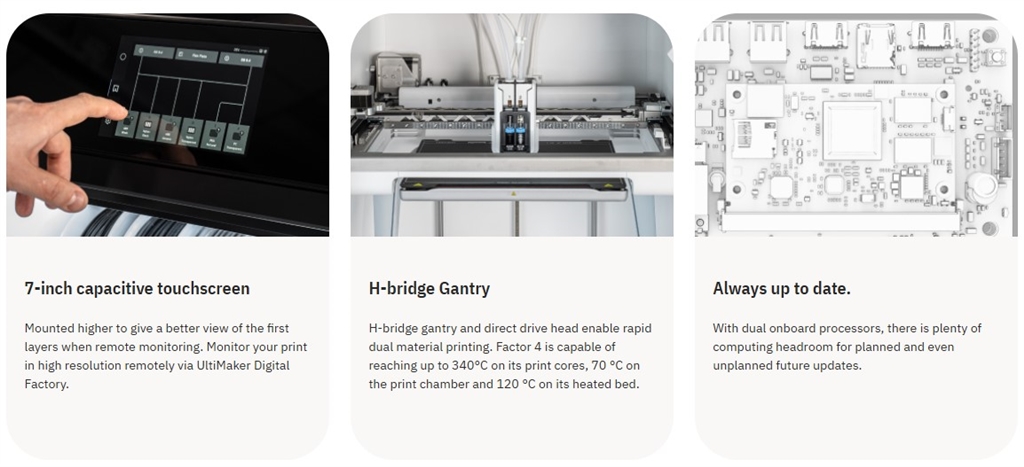

7 inches interactive touchscreen (resolution 1024 × 600 px) |
| Nozzle temp. |

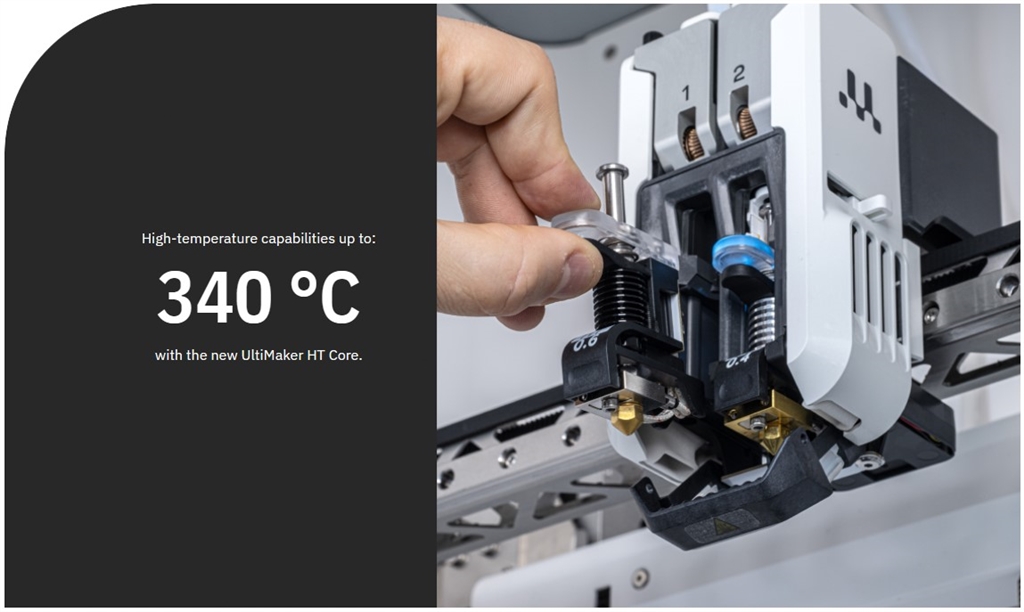

180 - 340℃ |
| Build plate |

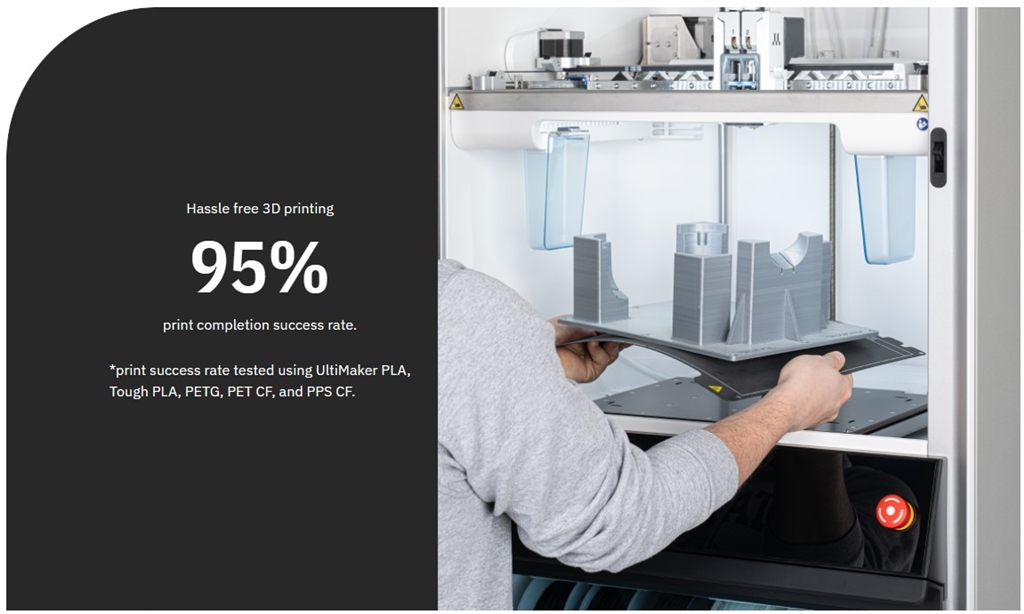

PEI-coated flexible steel build plate |
| Operating ambient temperature |
18 - 30 °C (64 – 86 °F)，Humidity：30 – 70% RH |
| Supplied free software |
SolidWorks、Siemens NX、Autodesk Inventor |
| Supported file type |
UltiMaker Cura：STL、OBJ、X3D、3MF、BMP、GIF、JPG、PNG Printable formats：G、GCODE、GCODE.gz、UFP |
| Supported OS |
MacOS、Windows and Linux |
| File transfer |
Wi-Fi(2.4 and 5GHz), Ethernet and USB |
