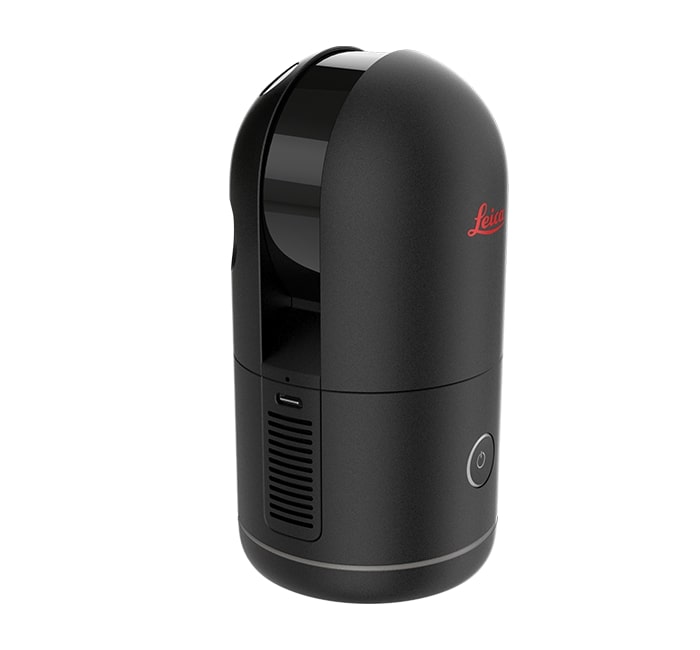

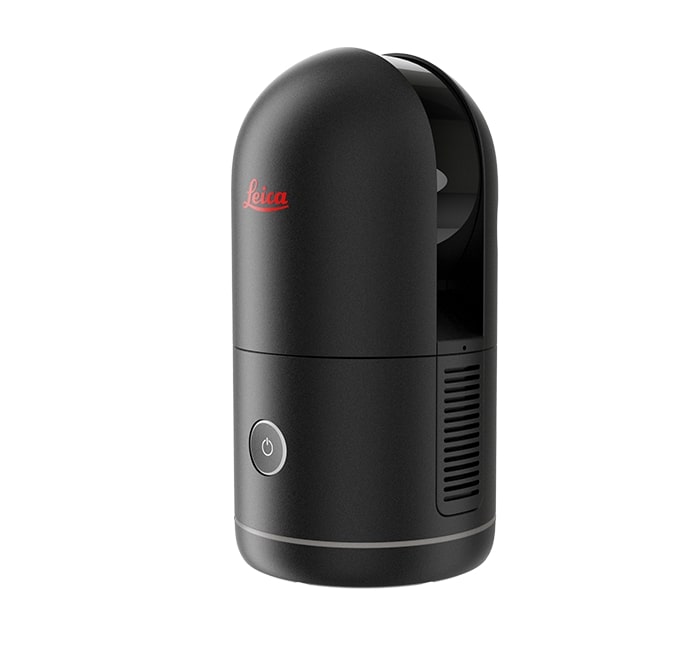

Leica Blk360 G2 3D Interior Scanner
The all-new Leica BLK360 breaks open the possibilities of reality capture !
Leica BLK360 laser 3D interior scanner, a small size in one hand, have high precision results, scanning 680,000 points per second, scanning range of 0.5-45 meters, a field of view of 360 ° x 270 °; using iOS, Android devices, with CYCLONE FIELD 360 software, can be simple remote operation, perfect for measuring a variety of large three-dimensional space, can also be shared with the Matterport 3D interior camera cloud storage space.
With unprecedented, best-in-class scanning speed, the BLK360 G2 makes you faster.
Click the 3D Module to see more details of Leica BLK360 G2 !
Realistic Capture
Speed through construction sites with fast scanning that doesn't compromise on quality. Your work is faster, your job is easier and you get the data you need, when you need it.
Extremely Fast Scanning

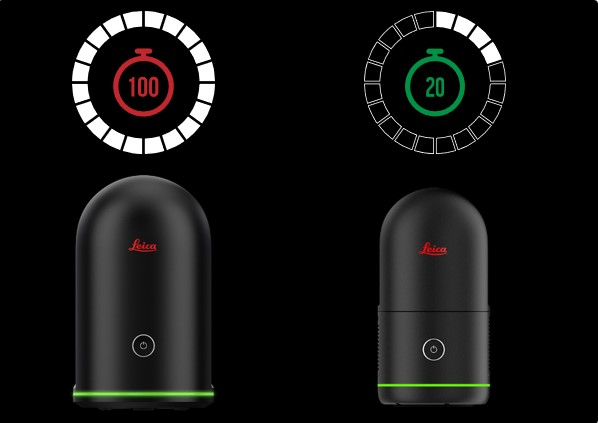

A supercharged, next-generation imaging laser scanner, the BLK360 captures a full scan with spherical images in just twenty seconds - over four times faster than the BLK360 G1.
The new BLK360 G2 takes just 20 seconds to produce a full spherical image and 3D point cloud and G1 have to take one minute.
Capture Everything You Need
With fast and agile field workflows and live feedback on your mobile device, you can be sure you've captured everything you need and more. And VIS technology automatically combines your scans to speed up your workflow and help you ensure your data sets are complete.
Create Stunning Visuals

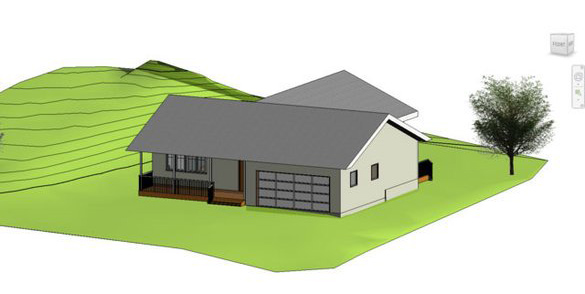

BLK360 data is highly valuable for so many applications - from AEC to VFX and VR - and you can easily transfer and work with it in your software ecosystem to create immersive and highly accurate deliverables and experiences.
Recognized Awards
Leica BLK360 Operations
Key Features
Immersive HDR imaging

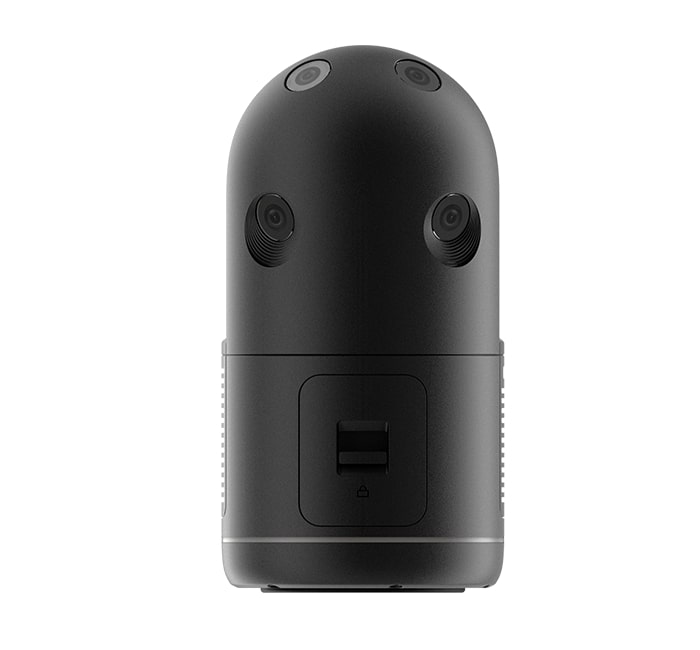

The BLK360's 4-camera system captures high dynamic range (HDR) spherical images, providing greater dynamic range for immersive photospheres and coloured point clouds.
Four 13-megapixel cameras capture the scene in high quality, and 5-bracket HDR imaging captures the detail in challenging lighting conditions and environments.
VIS Scan Alignment System
Leica Geosystems' exclusive Visual Inertial System (VIS) technology is now built into the new BLK360 G2 to automatically combine your scans.
Each scan you take is combined with your previous scan in the field. You'll spend less time aligning data and more time producing valuable results.
Ultra-fast Scanning
Building on the award-winning technology of the BLK360 G1, the new BLK360 has been optimised to collect data faster than ever before.
The integrated LiDAR sensor in the new BLK360 captures point clouds at a rate of 680,000 points per second and completes a scan with spherical images in 20 seconds.
High-Speed Data Transfer
Enjoy real-time data synchronisation between your devices with the BLK360's built-in wireless connection, then transfer data with speed and stability via WiFI or its USB-C port.
SMALL
20% smaller than BLK360 G1
FAST CAPTURE
Full scan and spherical imagery in 20 seconds
HDR IMAGING
4 camera, 5-bracket, 13-megapixel
VIS TECHNOLOGY
Combines scans automatically
SINGLE BUTTON OPERATION
As easy to use as BLK360 G1
MOBILE APP CONTROL
BLK Live App for scanner control and feedback
CAPTURE RATE
680,000 points per second
COMPLETE DATA SYNC
Sync data across devices
CYCLONE FIELD 360 Software
3D Scanning Mode Result：
．3D Module

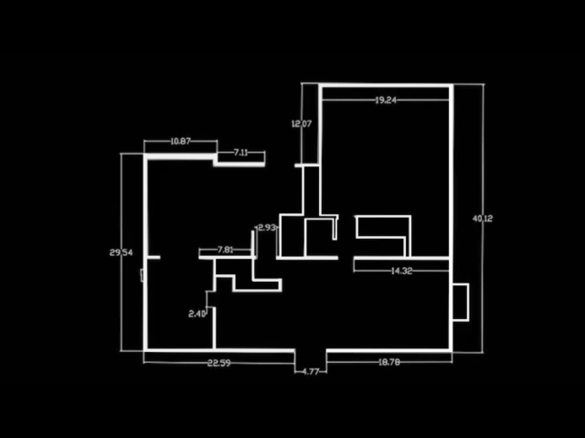

．2D Floor Plan

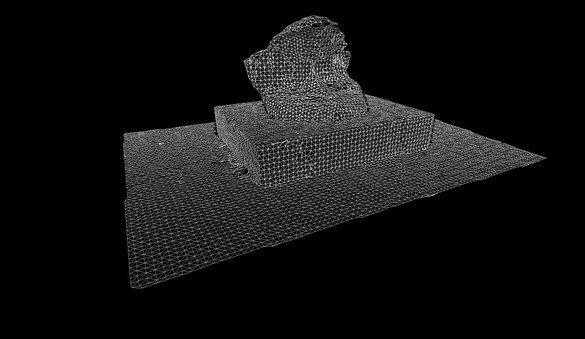

．3D Grid
．3D Vertical Space
Display Mode：
．3D Space Mode
．360° Spherical Interior Mode
Each fixed scanning position provides a 360° spherical view of the 3D space.

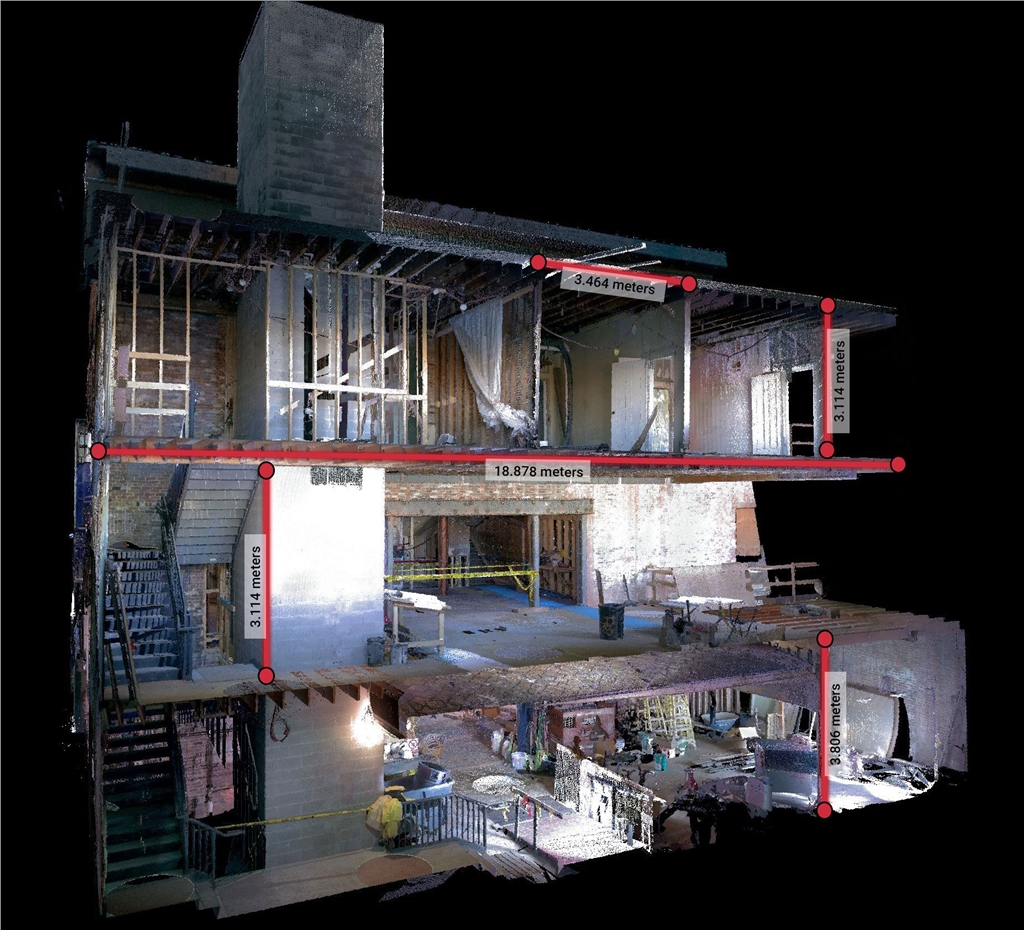

．Measurement Mode
Can scale and select any two points for point-to-point measurement.

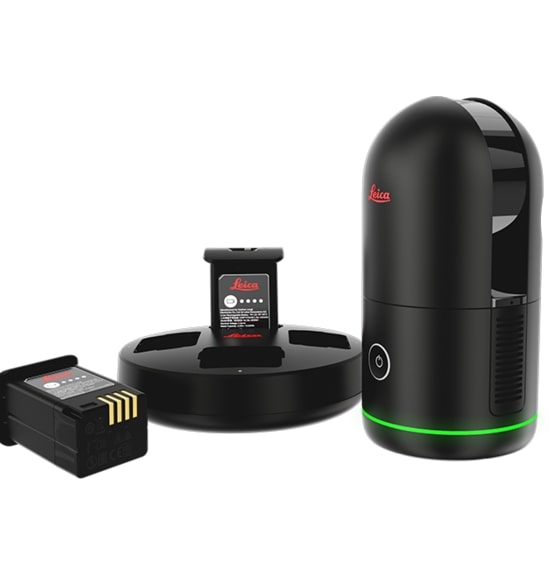

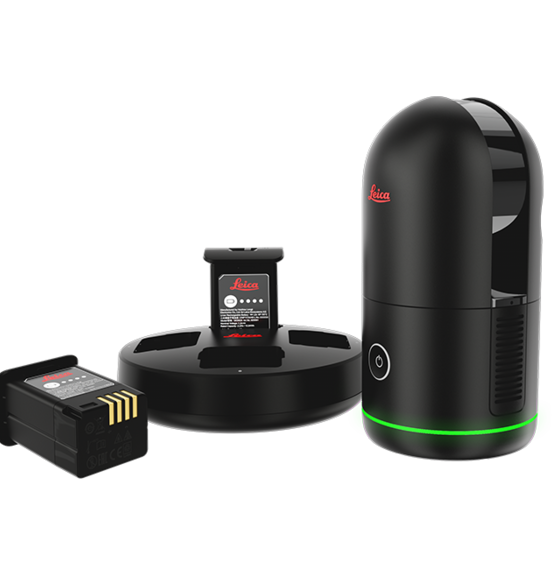

Product Includes：
• BLK360 Laser Scanner
• 3 Batteries
• Multicharger
• Transportation Case
• USB-C Cable
• Microfiber cloth
• Documentation
• BLK live app + .e57 single scan export
Contact us to get more information !
General
| Imaging Scanner |
3D scanner with integrated high-speed HDR spherical imaging system and Visual Inertial System (VIS) for real-time pre-registration |
Design & Physical
| Housing |
Black Anodized Aluminum |
| Dimensions |
Height：155 mm
Diameter：80 mm |
| Weight |
0.75 kg (0.85 kg incl. battery) |
| Transport cover |
GVP739 Transportation cover |
| Mounting mechanism |
Button-press quick release |
Operation
| Stand-alone operation |
One-button operation |
| Mobile devices |
BLK Live app for IOS and Android smartphones Leica Cyclone FIELD 360 app for iOS and Android tablet computers and smartphones |
| Wireless communication |
Integrated wireless LAN (802.11 b/g/n) |
| Internal memory |
Storage for up to 1500 setups |
| Instrument orientation |
Upright and upside down |
Power
| Battery type |
Internal, rechargeable Li-lon battery (Leica GEB825) |
| Capacity |
Up to 70 setups per battery |
Scanning
| Distance measurement system |
High speed time of flight enhanced by Waveform Digitizing (WFD) technology |
| Laser class |
1 (in accordance with IEC 60825-1:2014) |
| Wavelength |
830 nm |
| Field of view |
360° (horizontal) / 270° (vertical) |
| Range* |
min. 0.5 m - up to 45 m |
| Point measurement rate |
Up to 680.000 pts/ sec |
| Measurement modes |
4 user selectable resolution settings (6/12/25/50 mm @ 10 m) |
Imaging
| Camera system |
13 Mpixel 4-camera system captures 104 Mpx raw data for calibrated 360° x 270° spherical image |
| Speed |
< 8 sec. for full spherical LDR image at any light conditions <20 sec. for full spherical 5-brackets HDR image at any light conditions |
| Image modes |
- Auto-exposed LDR
- 5-brackets HDR
- Off - scanning only |
Performance
| Data acquisition |
< 20 sec. for complete full dome scan and spherical LDR image at 50 mm @ 10 m resolution with auto-matic tilt measurements |
| 3D point accuracy* |
4mm @ 10 m |
| Real time pre-registration |
Automatic point cloud alignment based on real time tracking of scanner movement between setups based on Visual Inertial System (VIS) by video-enhanced inertial measurement unit |
Environmental
| Robustness |
Designed for indoor and outdoor use |
| Operating temperature |
0° C to + 40 ° C |
| Dust / Humidity |
Solid particle/ liquid ingress protection IP54 (IEC 60529) |
Data Processing
| Data transfer |
Wireless and USB 3.0 |
| Desktop software |
Leica Cyclone REGISTER 360 and Cyclone REGISTER 360 (BLK Edition) |
| Cloud software |
HxDR Digital Reality: Cloud-based digital reality platform |
* At 78% albedo
