(Assembly & Tutotial) Snapmaker 3-in-1 3D Printer
．Tutoring location: Door-to-door service
．Snapmaker 3-in-1 3D Printer

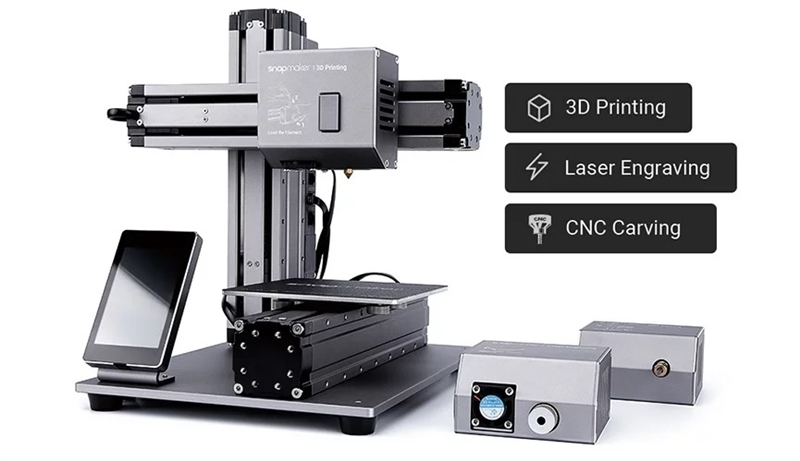

1. Snapmaker Original 3-in-1 CNC Laser／Laser Cutter／3D Printer
Snapmaker Original is a unique and versatile 3D printer, combined with a CNC milling machine, laser cutting, and engraving functions. It is one of the most funded 3D printing products on Kickstarter! Snapmaker is a modular device with multiple tool modules that are easily interchangeable. It is small and easy to install, it is suitable for offices with tight spaces. The all-metal aluminum frame covers all wiring and parts. It has an LCD touch screen for operation and comes with Snapmaker 3D software.
Snapmaker Original 3-in-1 3D Printer
| Touch screen |
3.5in |
| X / Y / Z Repeatable tolerance |
5µm |
| Weight |
4.5kg |
| File transfer |
USB |
| Power requirements |
100 – 240V AC |
| Support operation system |
MacOS、Windows |
| Depth |
335mm(13.2in) |
| Height |
289mm(11.4in) |
| Width |
272mm(10.7in) |
3D PRINTER
| Heated Bed |
Up to 80 ℃; |
| Layer Resolution |
50~300 microns |
| Build Volume |
125 x 125 x 125mm(4.9”; x 4.9”; x 4.9”;) |
| Supported Materials |
Non-proprietary 1.75mm PLA, ABS, etc. |
LASER ENGRAVER
| Work Area |
125 x 125 mm (4.9” x 4.9”) |
| Laser Power |
200mW |
| Supported File Types |
SVG, JPEG, PNG, etc. |
| Supported Materials |
Wood, bamboo, leather, plastic, fabric, paper, non-transparent acrylic, etc. |
CNC MILLER
| Work Area |
90 x 90 x 50 mm (3.5” x 3.5” x 2.0”) |
| Shank Diameter |
3.175mm |
| Supported File Types* |
SVG, STEP, IGES, IGS, DWG, DXF, etc. |
| Supported materials |
Wood, acrylic, PCB, carbon fiber sheet, jade, etc. |

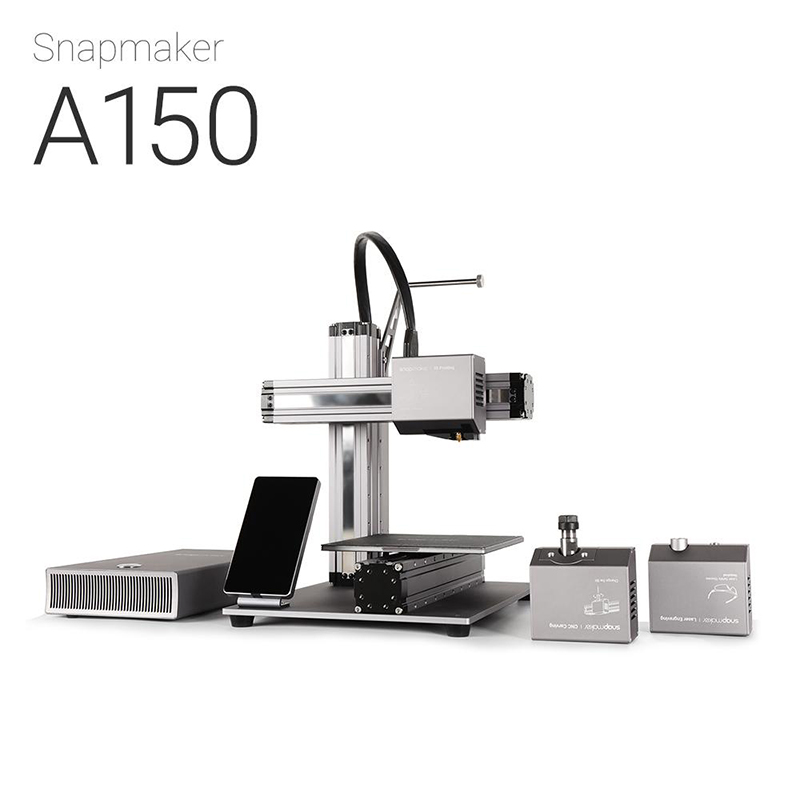

Snapmaker 2.0 3-in-1 3D Printer／A150
| Machine Size |
470 x 380 x 390mm |
| Frame material |
Aluminum |
| Connectivity |
WiFi、USB、USB cable |
| Touch screen |
5” Android OS, Quad Core A7 CPU @1.1GHz |
| Software |
Snapmakerjs |
| File Formats |
STL、OBJ、SVG、JPEG、PNG |
| Supported OS |
MacOS、Windows、Linux |
| Power |
320W |
3D PRINTER
| Build volume |
160 x 160 x 145mm |
| Max build plate temp |
110°C |
| Resolution |
50-300nm |
| Max nozzle temperature |
275°C |
| Nozzle diameter |
0.4mm |
| Supported filaments |
PLA、ABS、TPU、Wooded PLA |
| File Formats |
STL、OBJ |
LASER ENGRAVER
| Working area |
160 x 160mm |
| Laser power |
1600mW, 450nm blue diode laser |
| Wavelength |
450nm |
| Security class |
Class 4 |
| Supported materials |
Wood, leather, plastic, fabric, paper, opaque acrylic…etc. |
| File formats |
SVG、JPEG、PNG、JPG、BMP、DXF |
CNC MILLER
| CNC working area |
160 x 160 x 90mm |
| Shank diameter |
0.5mm-6.35mm |
| Spindle speed |
6000-12,000 RPM |
| Supported materials |
Acrylic, PCB, carbon fiber board, jade |
| File formats |
.CNC / .NC |

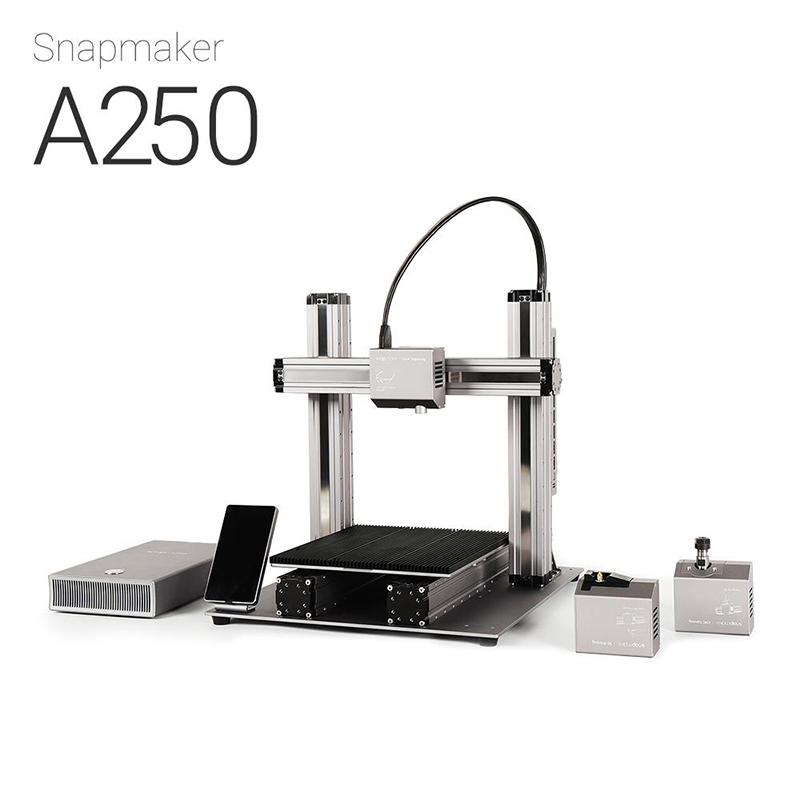

Snapmaker 2.0 3-in-1 3D Printer／A250
| Machine Size |
600 x 510 x 490mm |
| Frame material |
Aluminum |
| Connectivity |
WiFi、USB、USB cable |
| Touch screen |
5” Android OS, Quad Core A7 CPU @1.1GHz |
| Software |
Snapmakerjs |
| File Formats |
STL、OBJ、SVG、JPEG、PNG |
| Supported OS |
MacOS、Windows、Linux |
| Power |
320W |
3D PRINTER
| Build volume |
230 x 250 x 235mm |
| Max build plate temp |
100°C |
| Resolution |
50-300nm |
| Max nozzle temperature |
275°C |
| Nozzle diameter |
0.4mm |
| Supported filaments |
PLA、ABS、TPU、Wooded PLA |
| File Formats |
STL、OBJ |
LASER ENGRAVER
| Working area |
230 x 250mm |
| Laser power |
1600mW, 450nm blue diode laser |
| Wavelength |
450nm |
| Security class |
Class 4 |
| Supported materials |
Wood, leather, plastic, fabric, paper, opaque acrylic…etc. |
| File formats |
SVG、JPEG、PNG、JPG、BMP、DXF |
CNC MILLER
| CNC working area |
230 x 250 x 180mm |
| Shank diameter |
0.5mm-6.35mm |
| Spindle speed |
6000-12,000 RPM |
| Supported materials |
Acrylic, PCB, carbon fiber board, jade |
| File formats |
.CNC / .NC |

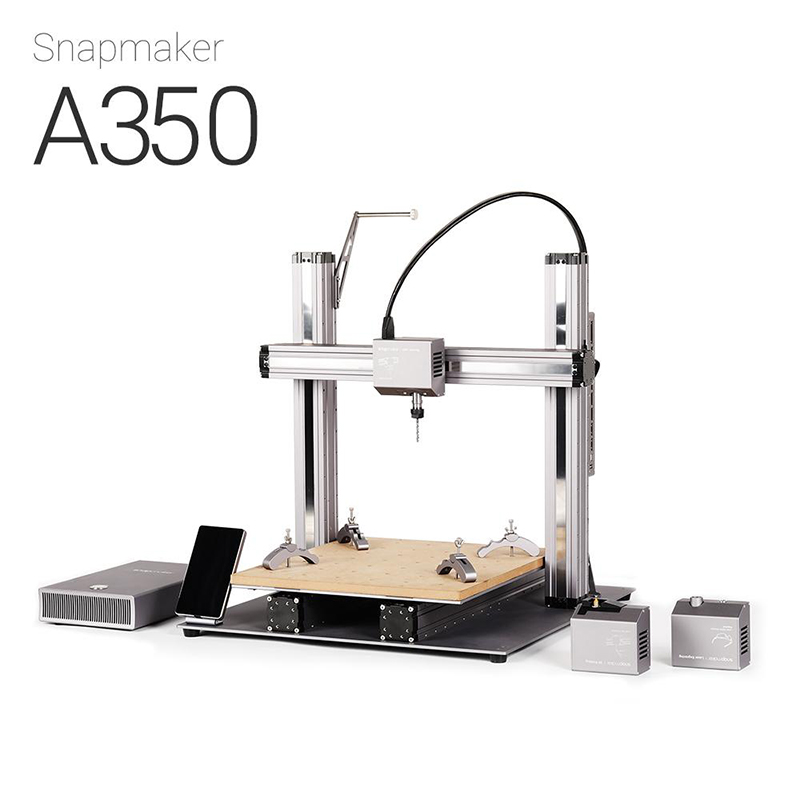

Snapmaker 2.0 3-in-1 3D printer／A350
| Machine Size |
700 x 660 x 580mm |
| Frame material |
Aluminum |
| Connectivity |
WiFi、USB、USB cable |
| Touch screen |
5” Android OS, Quad Core A7 CPU @1.1GHz |
| Software |
Snapmakerjs |
| File Formats |
STL、OBJ、SVG、JPEG、PNG |
| Supported OS |
MacOS、Windows、Linux |
| Power |
320W |
3D PRINTER
| Build volume |
320 x 350 x 330mm |
| Max build plate temp |
80°C |
| Resolution |
50-300nm |
| Max nozzle temperature |
275°C |
| Nozzle diameter |
0.4mm |
| Supported filaments |
PLA、ABS、TPU、Wooded PLA |
| File Formats |
STL、OBJ |
LASER ENGRAVER
| Working area |
320 x 350mm |
| Laser power |
1600mW, 450nm blue diode laser |
| Wavelength |
450nm |
| Security class |
Class 4 |
| Supported materials |
Wood, leather, plastic, fabric, paper, opaque acrylic…etc. |
| File formats |
SVG、JPEG、PNG、JPG、BMP、DXF |
CNC MILLER
| CNC working area |
320 x 350 x 275mm |
| Shank diameter |
0.5mm-6.35mm |
| Spindle speed |
6000-12,000 RPM |
| Supported materials |
Acrylic, PCB, carbon fiber board, jade |
| File formats |
.CNC / .NC |
