Bambu Lab H2D 3D Printer Series
Product model BL00021
Brand Bambu Lab
Price 15700 International Version now available!

Quantity

品項
Bambu Lab H2D 3DPrinter
Bambu Lab H2D AMS Combo 3D Printer
Bambu Lab H2D Laser Full Combo 3D Printer 10w
Bambu Lab H2D Laser Full Combo 3D Printer 40w

Add in cart Proceed to checkout

Product details
Specification

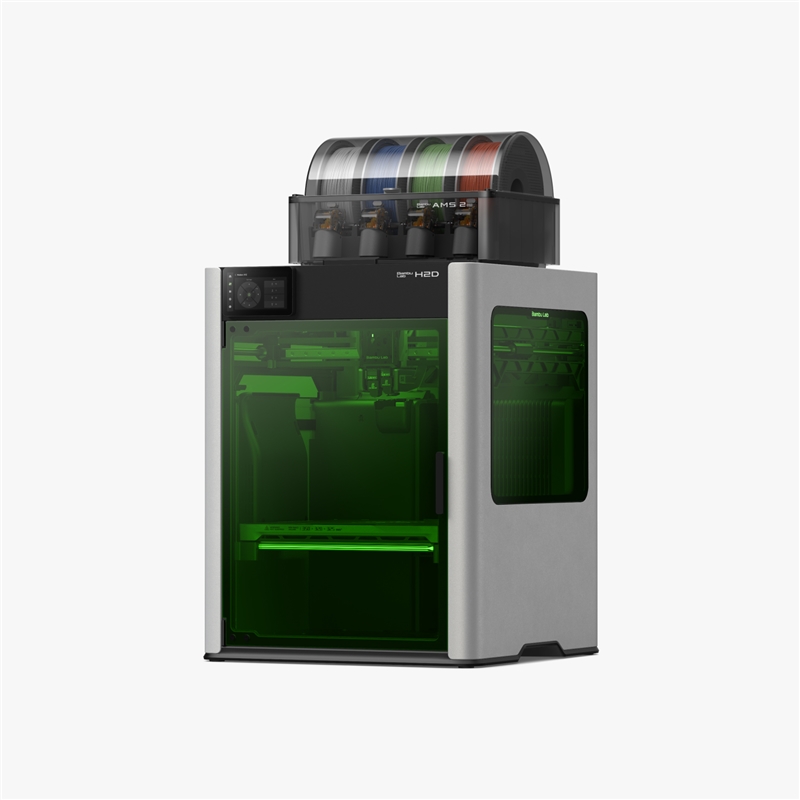

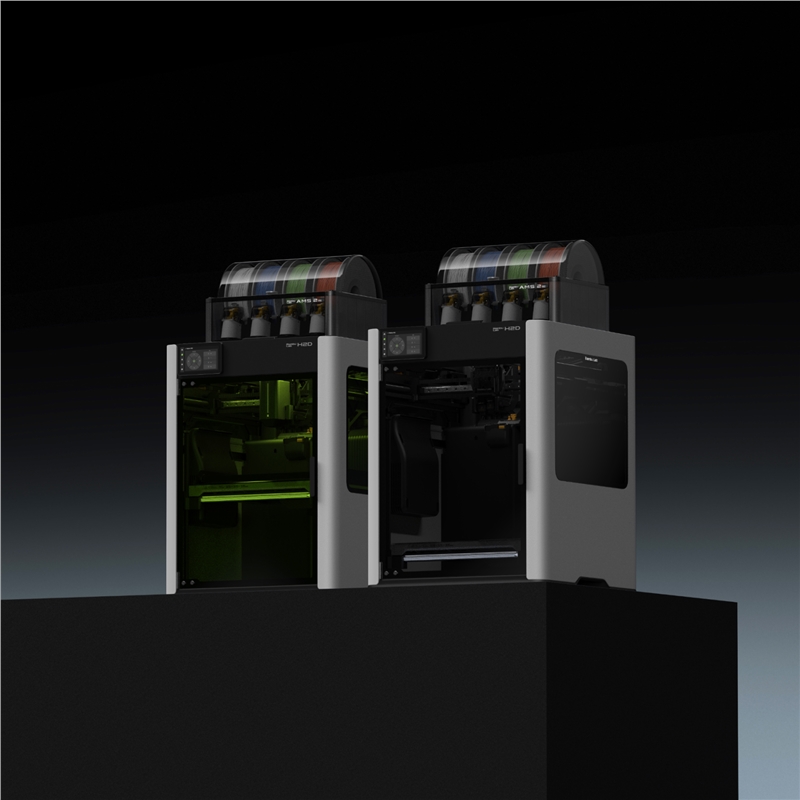

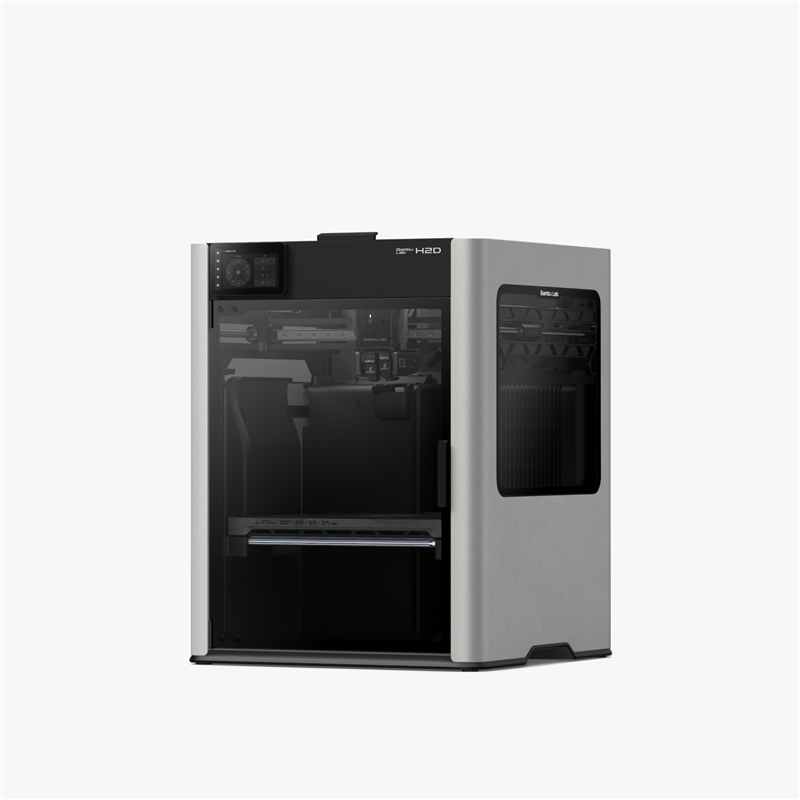

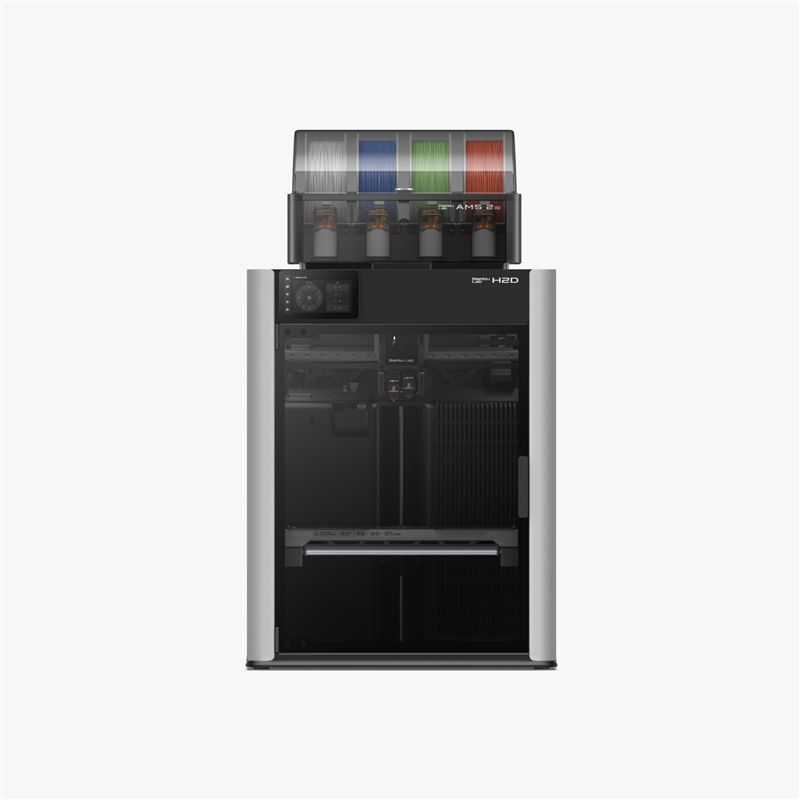

Bambu Lab H2D 3D Printer

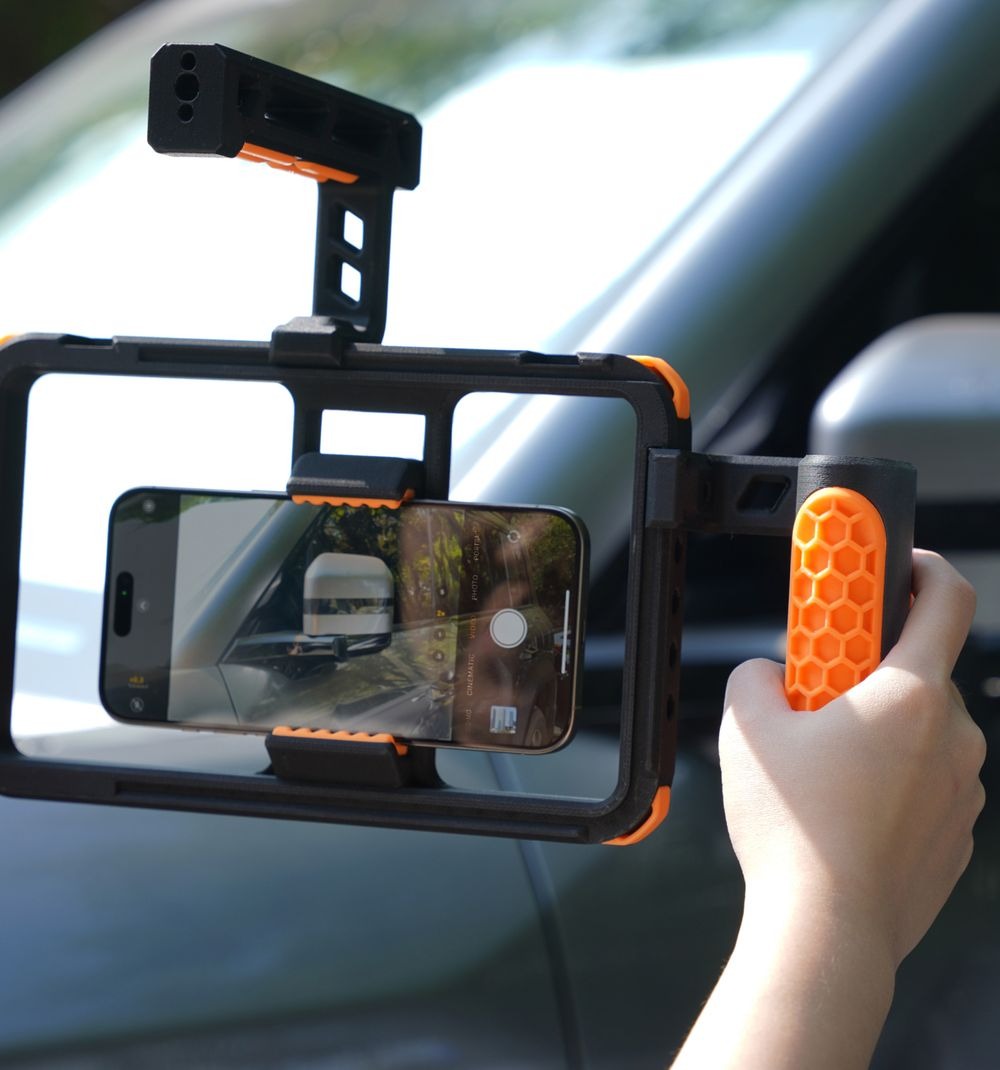

Multi-Material Printing
Flexible and rigid, low cost and exotic materials in one print
Combine flexible and rigid materials in a single print to create impressive interlocking structures and innovative designs beyond traditional manufacturing.
Pairing high-performance materials with standard ones further reduces costs and boosts material efficiency by using premium materials only where necessary.

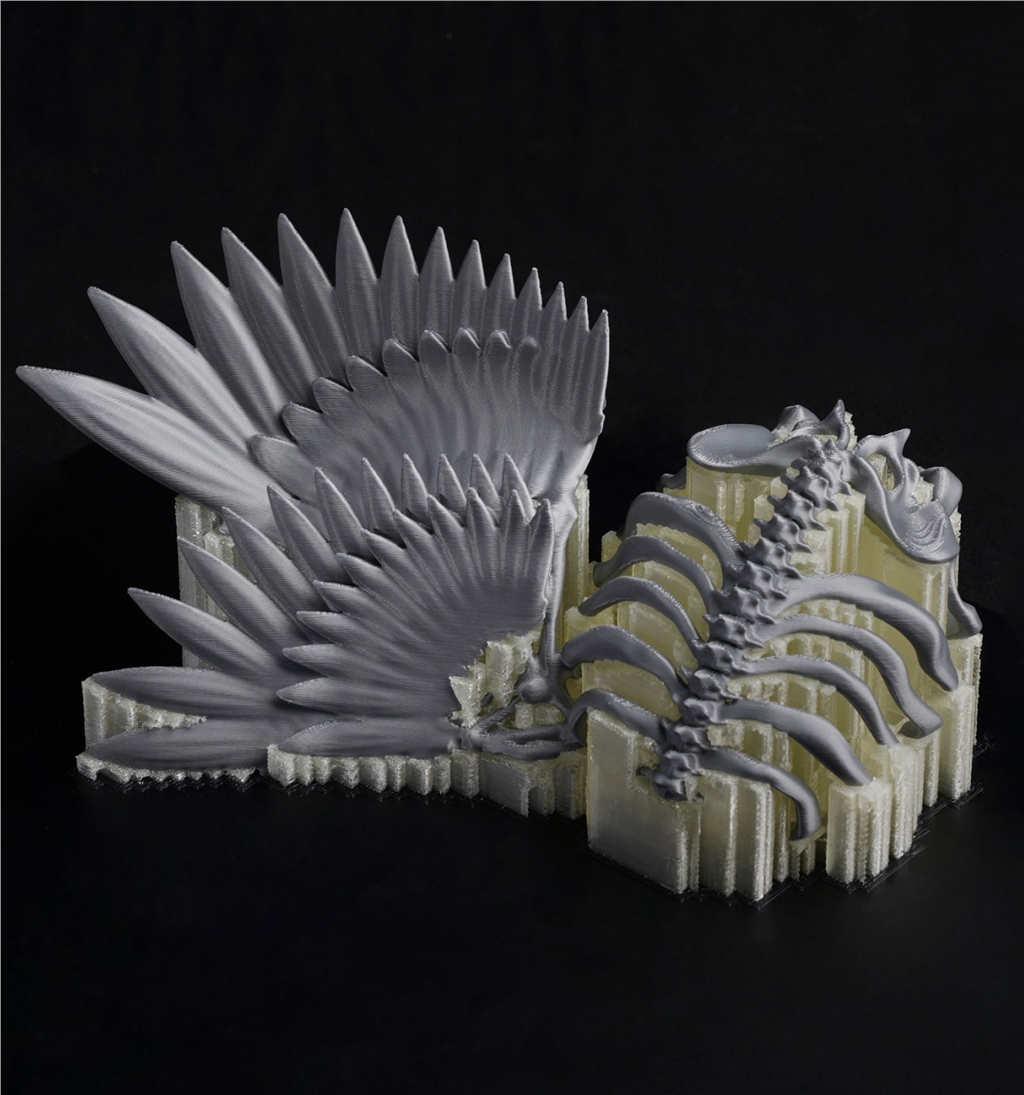

Dedicated Support Material
Perfect supports with minimal waste, purging and reloading
Print with support is no longer a headache.
With H2D’s dual-nozzle setup, one nozzle can be reserved for dedicated support material, allowing secured print and perfect support interface.

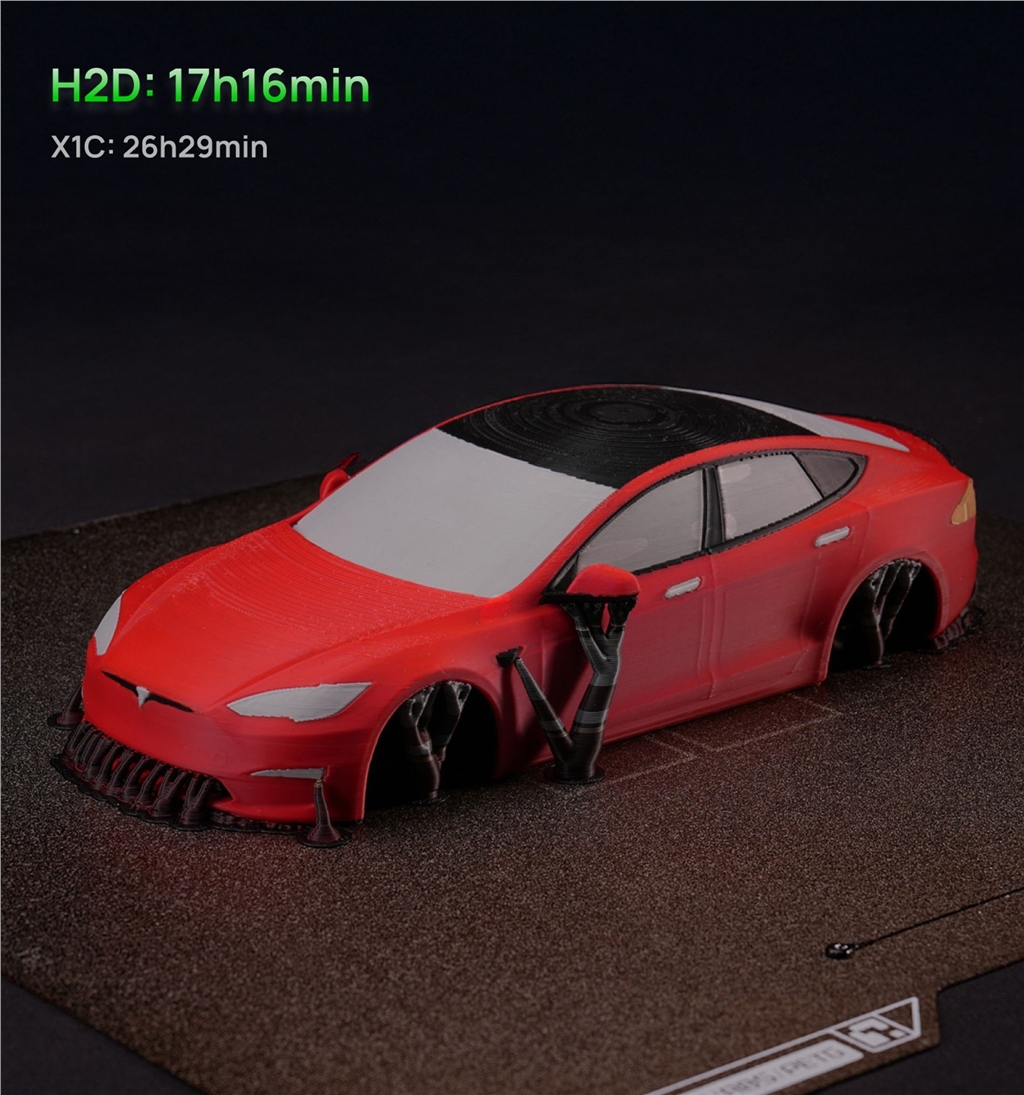

Efficient Multi-Color Printing
Fast and efficient multi-color printing
Dual-nozzle printing reduces purge cycles in multi-color prints.
H2D's smart algorithms optimize filament use, maximizing dual-nozzle efficiency to save time and materials.

Personal Manufacturing Hub

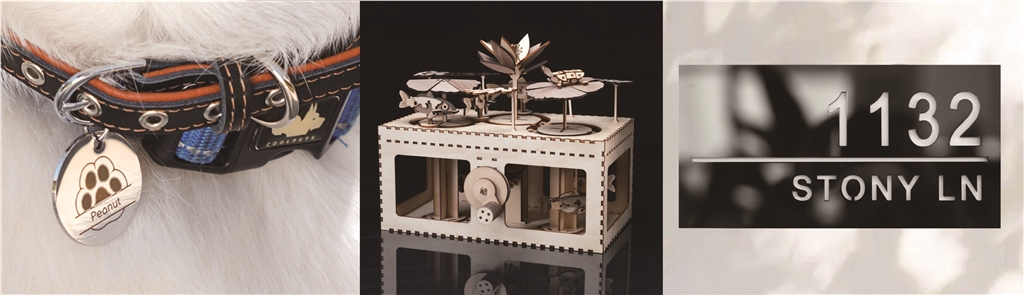

Laser
10W and 40W 455nm Laser for engraving & cutting

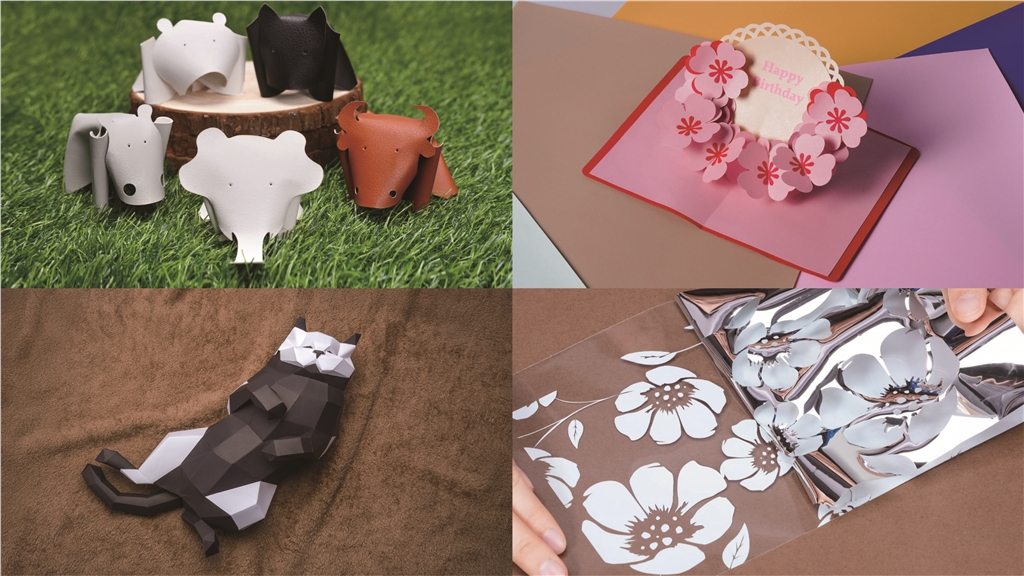

Digital Cutting
Precise cutting on variety of materials

Pen Drawing
Drawing and writing

Live Spatial Alignment
What-You-See-Is-What-You-Get
The H2D’s BirdsEye camera, combined with computer vision algorithms, delivers top-view alignment accuracy up to 0.3mm.
This advanced spatial alignment allows users to place the tool path at the right position on the material – truly "what-you-see-is-what-you-get."*

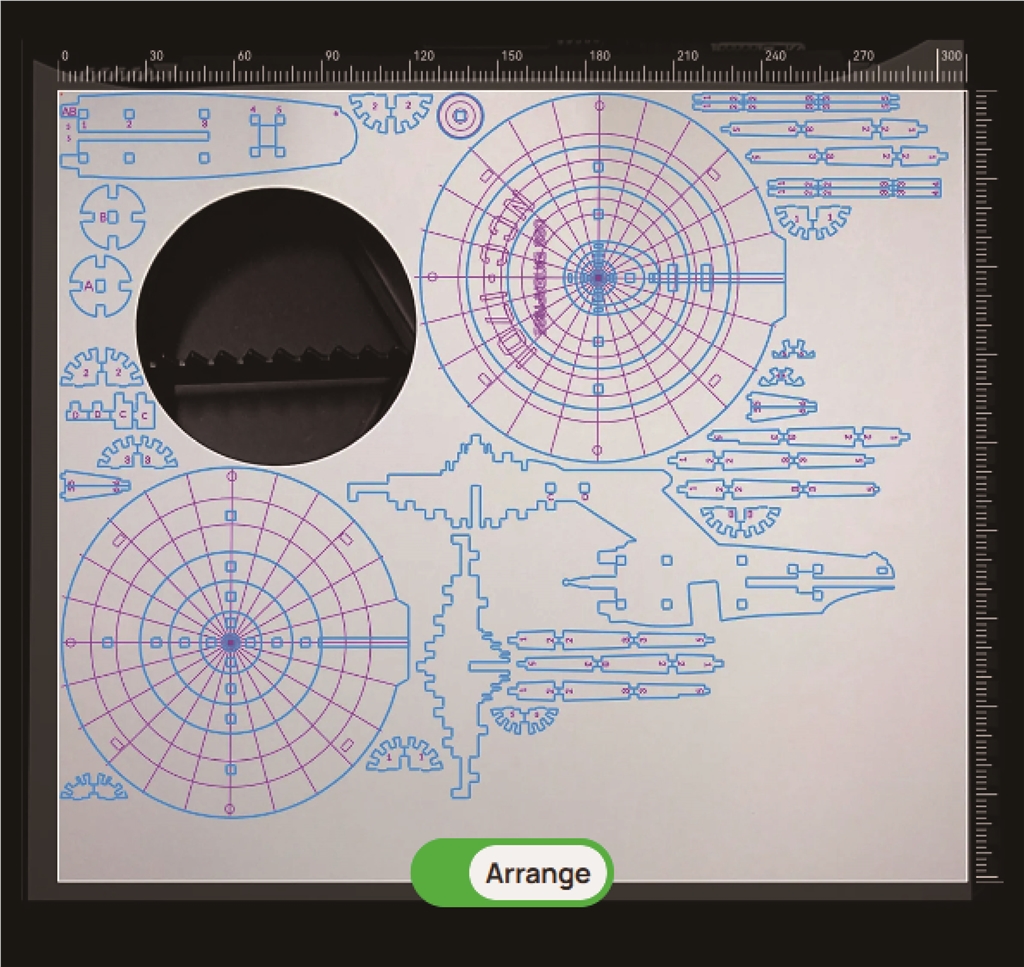

Auto Arrangement
Maximize material efficiency, minimize waste
Leveraging real-time images from the BirdsEye camera, Bambu Suite can automatically arrange your project according to the shape of your material, i.e left over plywood from the previous project.
This feature helps you to get the most out of every material.

Safety, Checked!
H2D's upgraded safety design enhances user confidence. Utilizing internal sensors, it provides sensitive active protection, preventing potential issues. The specialized air circulation and laser safety systems ensure optimal safety and a superior operating environment in all conditions.

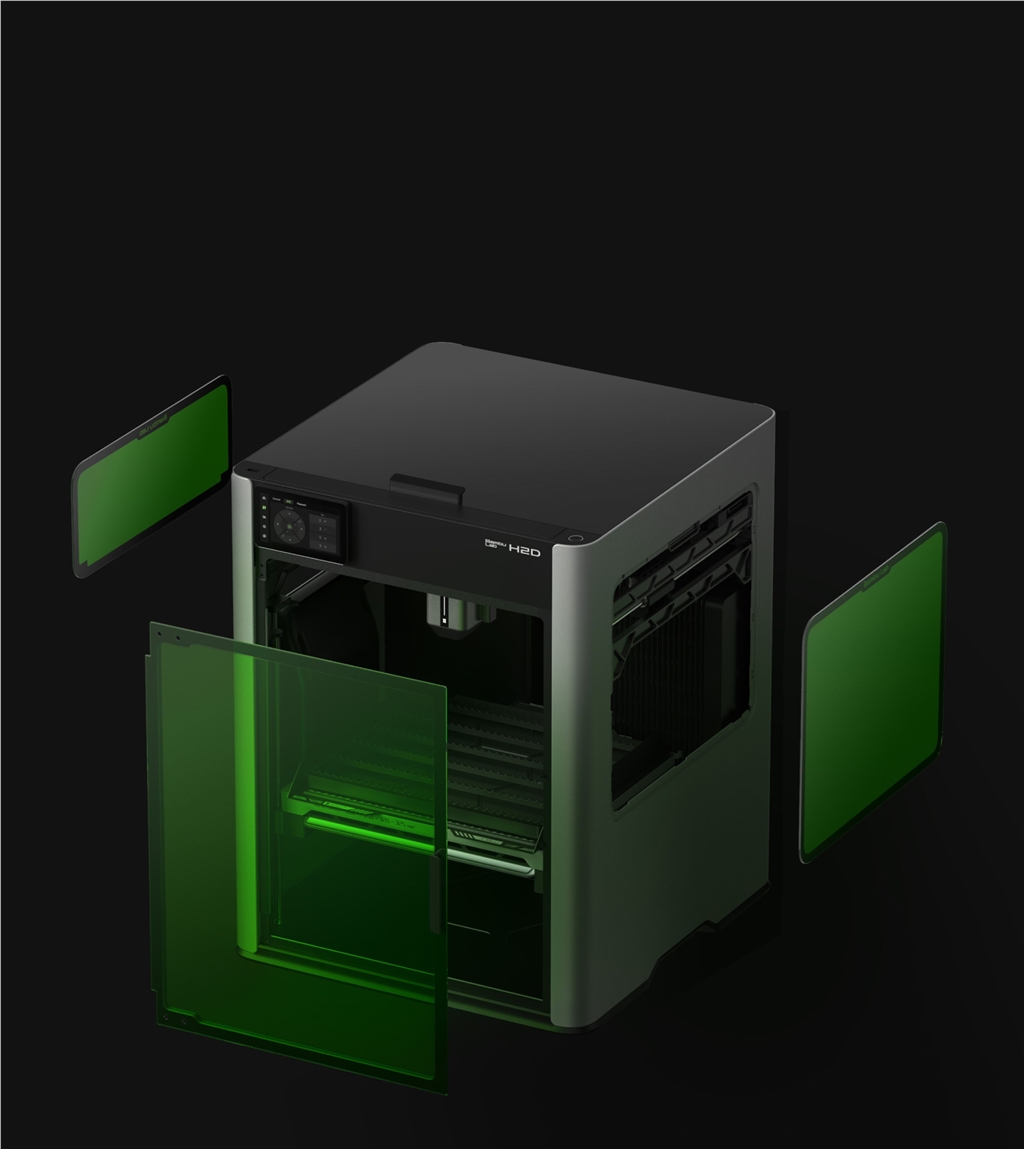

Laser Protection
The H2D Laser Edition comes standard with laser safety windows designed to enhance the safety of user observing laser operation.
Additionally, doors are equipped with sensor that trigger and emergency stop if opened during laser operation.

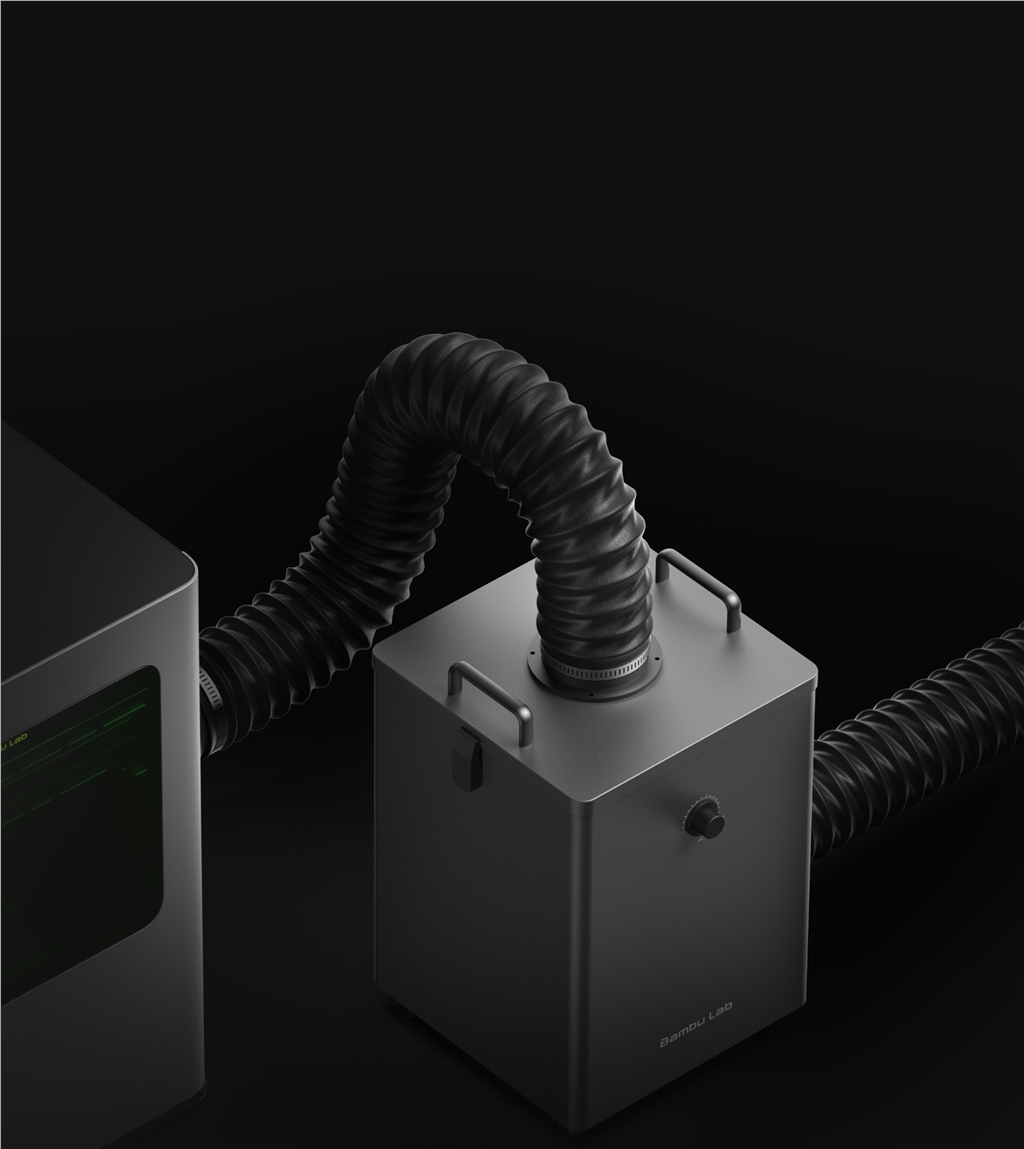

Air Purifier
An optional air purifier ensures clean air, even during indoor laser operations.

Bye-bye to manual laser focusing and thickness setting
Material CodeSync
The H2D automatically scans the QR code on your material to load the perfect preset.

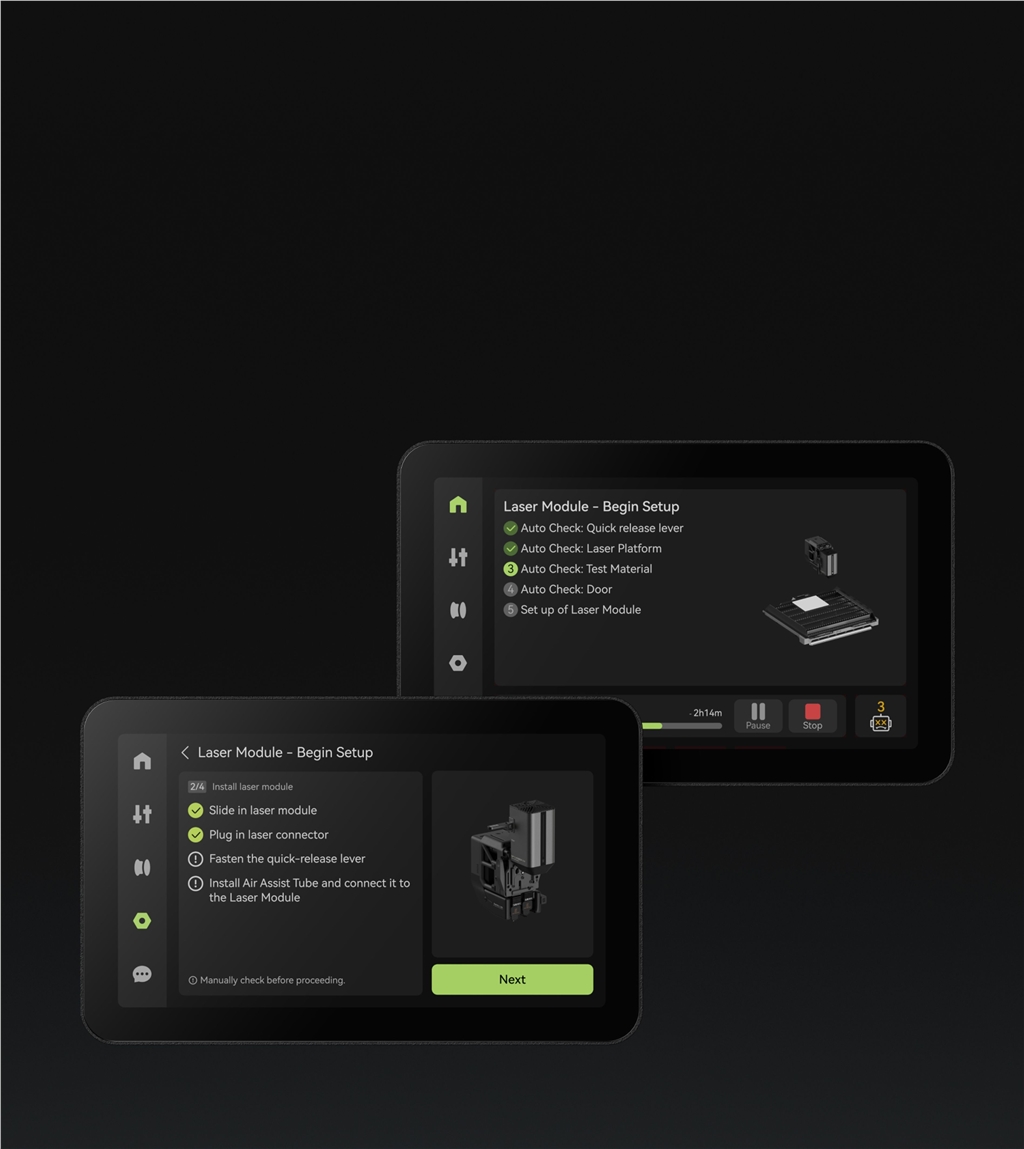

Full-Auto Calibration
A single tap initiates automated laser focus verification and material measurement, eliminating manual adjustments.

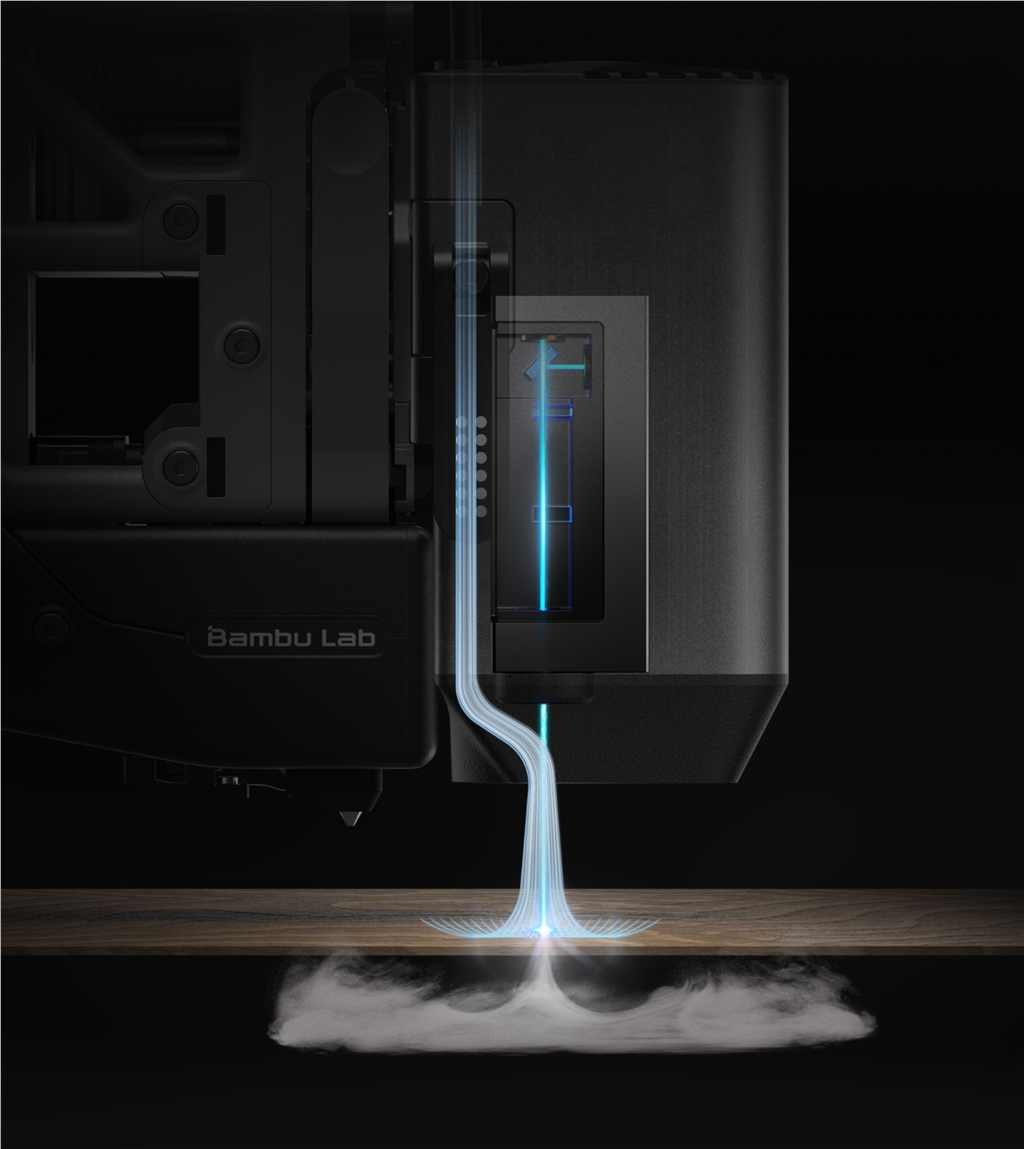

Air Assist
Improve surface quality by directing high-speed air to cool the laser path, ensuring cleaner and more precise results.

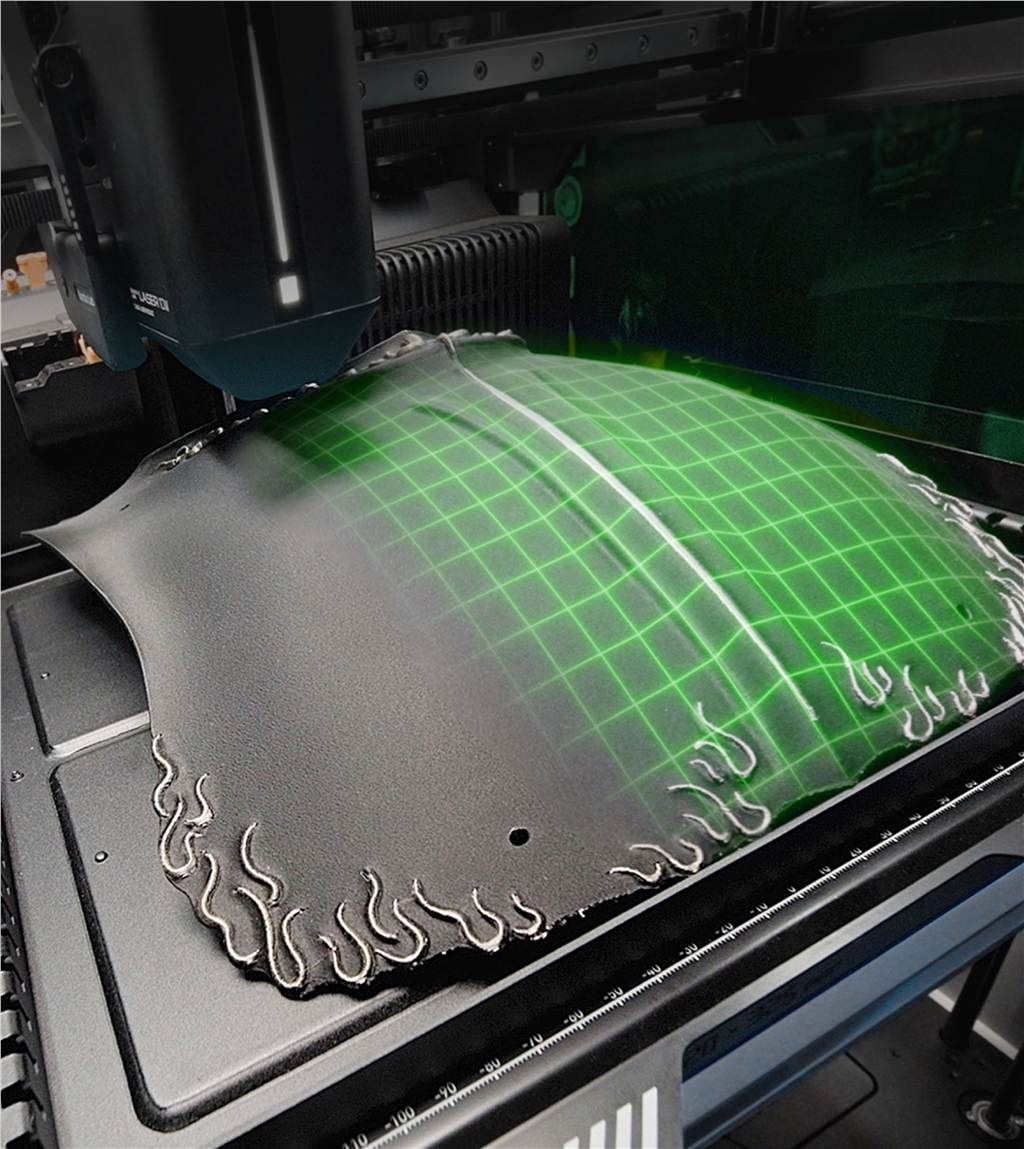

Contact-less 3D Mesh*
Advanced optical height measurement creates a detailed 3D mesh without physical contact, enabling precise laser work on curved surfaces.

Bigger, Faster, Better
Our Secret Weapon:Vision Encoder：50µm ultra-fine motion accuracy
An ultra-accurate vision encoder plate, combined with 5µm resolution optical measurements to track and correct toolhead motion,
enables the H2D to achieve consistent and reliable distance-independent 50μm motion accuracy across the entire workspace, one order of magnitude better than its predecessor. (*Vision Encoder sold separately)

King-Size Work Zone
Break free from size constraints
With a print volume up to 350mm×320mm×325mm*, creating large-scale projects has never been easier!
From laser engraving on sizable objects to printing oversized models, the expanded capacity empowers you to bring even your most ambitious ideas to life.

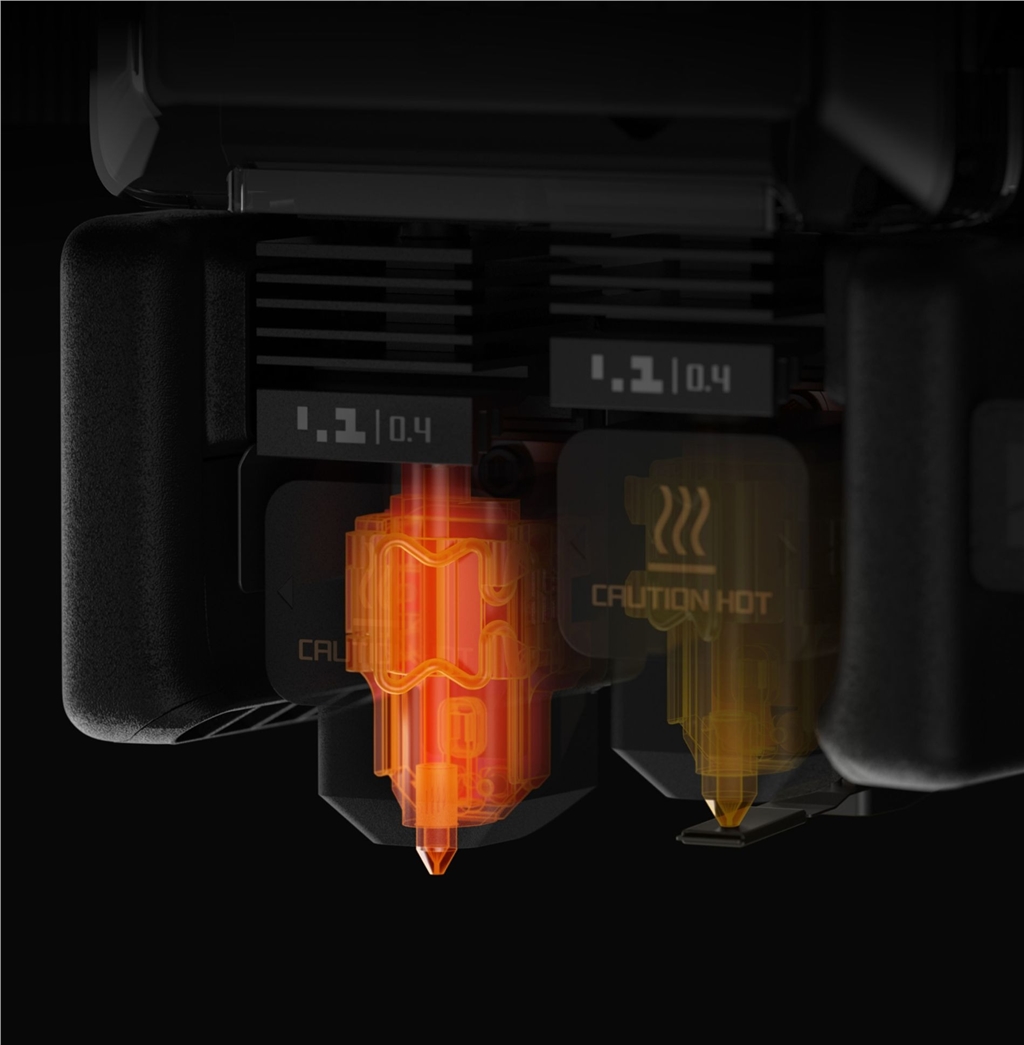

350°C Hotend & 65°C Chamber Heating
Unleash the full potential of high-performance materials
Equipped with 65°C active chamber heating and a high-temperature hotend reaching up to 350°C, the H2D delivers precise closed-loop temperature control.
This advanced system effectively eliminates warping and deformation in high-performance materials, ensuring superior layer bonding and maximizing their full potential.

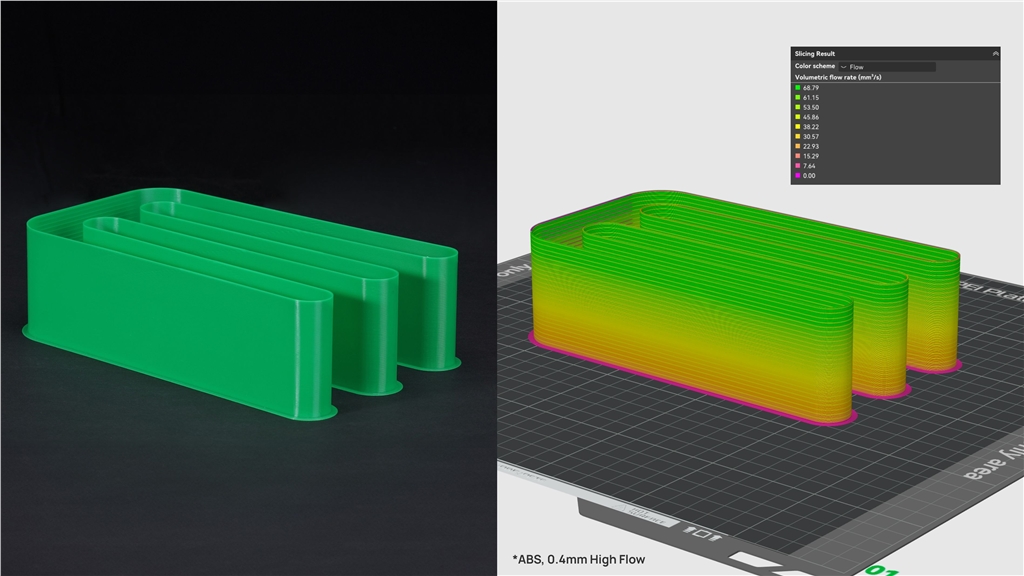

REAL High-Flow Hotend*
Consistently print at 600mm/s

The H2D’s purpose-built high-flow hotend ensures reliable, high-speed printing at 600mm/s.
Designed for consistent performance, it eliminates mid-print flowrate restrictions, enabling uninterrupted high-speed printing regardless of the print size or complexity.

DynaSense Extruder
Intelligent sensing for precise extrusion control
Bambu Lab's proprietary PMSM servo architecture establishes an intelligent extrusion governance system.
It executes 20kHz Torque/Resistance and position sampling to dynamically modulate electromagnetic torque vectors. Stabilizing extrusion and detecting filament grinding and clogging.

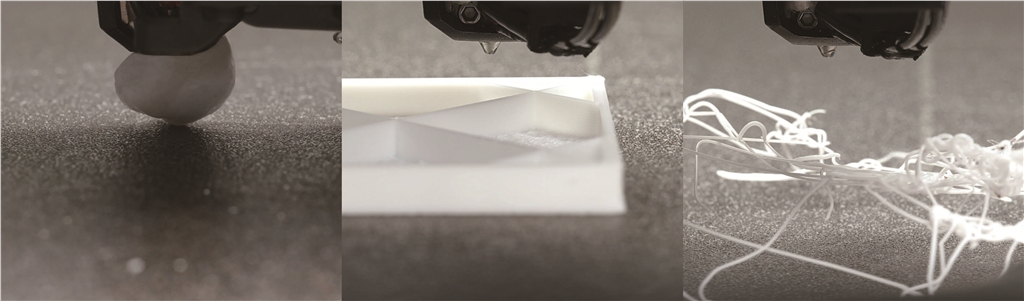

Nozzle Camera
Monitor extrusion at the nozzle tip
The H2D features an AI-backed nozzle camera with macro lens.
This intelligent monitoring system continuously tracks extrusion patterns, immediately detecting material accumulation, filament deviations, and extrusion failures.

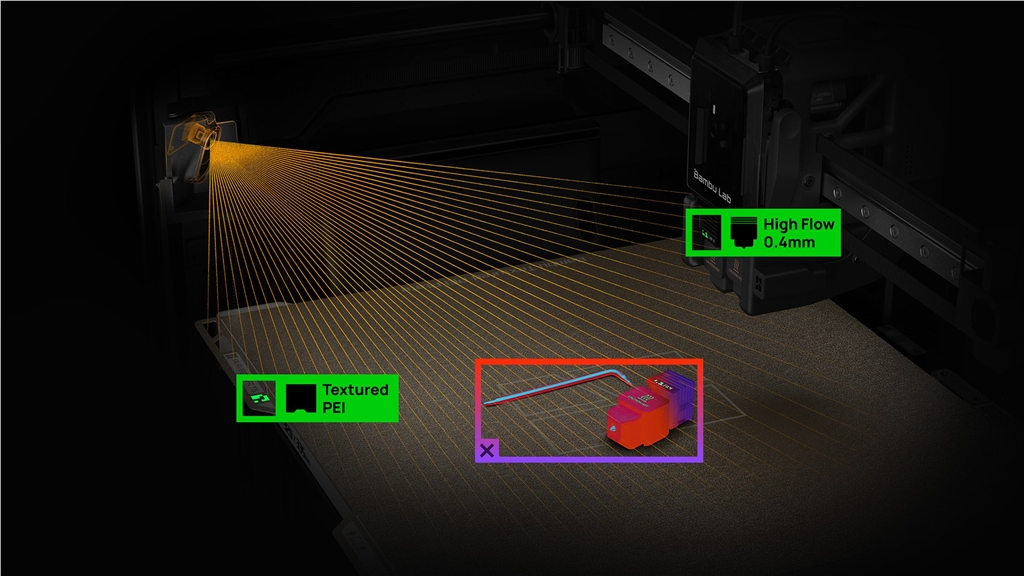

Pre-Flight Checklist by AI
Peace of mind, every time you print
Prior to each operational cycle, H2D's vision system initiates a comprehensive pre-flight checklist:
Chamber Integrity Scan – Detects debris across the entire print surface.
Hardware Configuration Audit – Instantly identifies nozzle dimensions and build plate properties.
Digital-Physical Alignment – Automatically verifies consistency between detected hardware specifications and active slicer parameters.

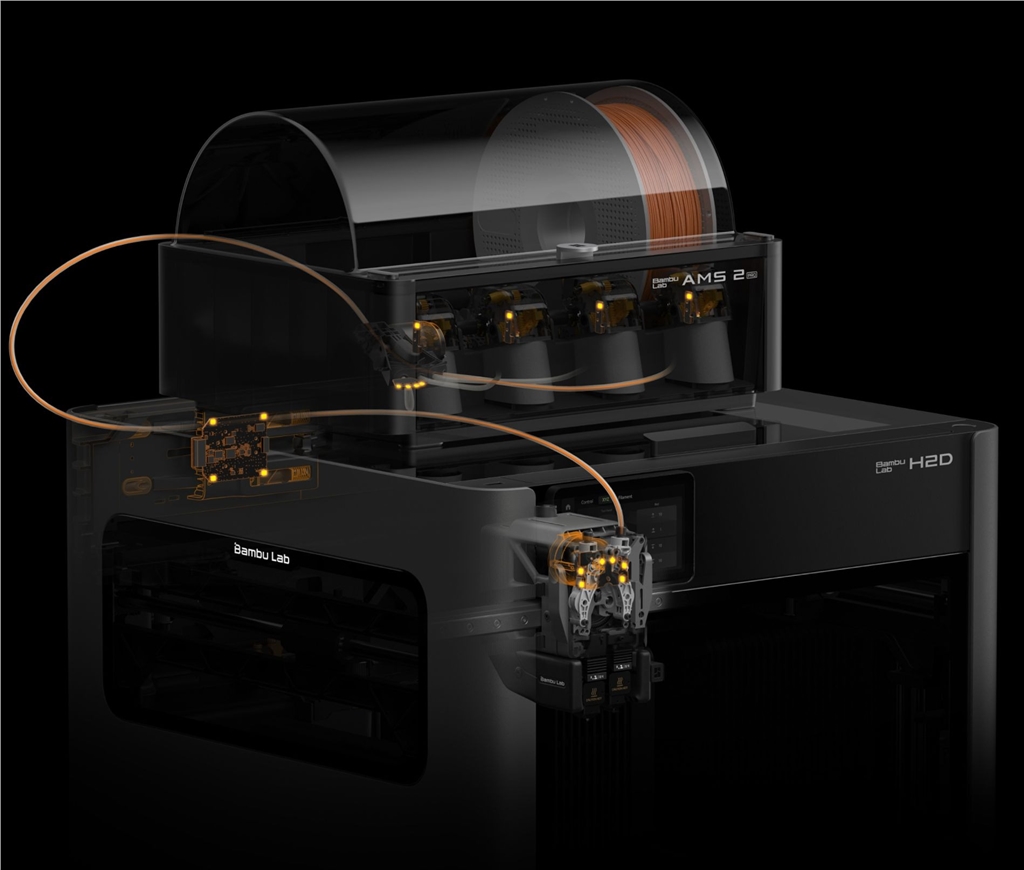

SOTA Filament Monitoring
15 sensors on one filament path
Unlike legacy systems with single filament run-out detectors, the H2D features comprehensive material flow monitoring.
Throughout the AMS-to-nozzle path, 15 strategic sensors form an intelligent network, continuously tracking five key parameters: feeding velocity, tension, filament tip location, extruder thermal environment, and dynamic extrusion pressure.
This establishes an industry-leading filament behavior control system.

Item

H2D

Printing Technology

Fused Desposition Modeling

Build Volume（W*D*H）

Single Nozzle Printing：325×320×325mm
Dual Nozzle Printing：300×320×325mm
Total Volume for Two Nozzles：350×320×325mm

Physical Dimensions

494×514×626mm³

Net Weight

31kg

Chassis & Shell

Aluminum、Steel、Plastic and Glass

Toolhead

Hotend

All Metal

Nozzle & Extruder Gear

Hardened Steel

Extruder Motor

Bambu Lab Highprecision
Permanent Magnet Synchronous Motor

Max Nozzle Temperature

350℃

Included Nozzle Diameter

0.4mm

Supported Nozzle Diameter

0.2mm，0.6mm，0.8mm

Filament

1.75 mm

Supported Filament Type

PLA, PETG, TPU, PVA, BVOH

Optimal

ABS, ASA, PC, PA, PET

Excellence

Carbon/ Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA

Excellence

PPA-CF/ GF, PPS, PPS-CF/ GF

Ideal

Chamber Temperature Control

Active Chamber Heating

Supported

Max Temperature

65℃

Air Purification

Pre-filter Grade

HEPA Filter Grade

H12

Activated Carbon Filter Type

Granulated Coconut Shell

Wi-Fi

Wi-Fi Protocol

IEEE 802.11 a/b/g/n

Wi-Fi Transmitter Power (EIRP)

2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5 GHz Band1/2: <23 dBm (FCC/CE/SRRC/MIC)
5 GHz Band3: <30 dBm (CE); <24 dBm (FCC)
5 GHz Band4: <23 dBm (FCC/SRRC); <14 dBm (CE)

Operating Frequency

2412-2472 MHz, 5150-5850 MHz (FCC/CE)
2400-2483.5 MHz, 5150-5850 MHz (SRRC)

Heatbed

Supported Build Plated Type

Textured PEI Plate, Smooth PEI Plate

Max Heatbed Temperature

120℃

Speed

Max Speed of Toolhead

1000mm/s

Max Acceleration of Toolhead

20000 mm/s²

Sensor

Live View Camera

Built-in; 1920*1080

Nozzle Camera

Built-in; 1920*1080

BirdsEye Camera

Built-in; 3264*24 48

Toolhead Camera

Built-in; 1920*1080

Door Sensor

Supported

Filament Run Out Sensor

Supported

Filament Odometry

Supported with AMS

Power Loss Recovery

Supported

Electrical Requirements

Voltage

100-120 VAC / 200-240 VAC, 50/60 Hz

Max Power

2200W@220V, 1320W@110V

Electronics

Touchscreen

5-inch 720*1280 Touchscreen

Storage

Built-in 8GB EMMC 和USB Port

Control Interface

Touchscreen、mobile APP、PC App

Neural Processing Unit

2 Tops

Software

Slicer & Software

Bambu Studio, Bambu Suite, Bambu Handy
Supports third-party slicers which export standard G-code, such as Super Slicer，PrusaSlicer and Cura，but certain advanced features may not be supported.

Supported Operating System

MacOS, Windows

Cooling

Part Cooling Fan

Closed Loop Control

Chamber Heat Circulation Fan

Closed Loop Control

Main Control Board Fan

Closed Loop Control

Cooling Fan for Hotend

Closed Loop Control

Auxiliary Part Cooling Fan

Closed Loop Control

10W&40W Laser Module

Laser Type

Semiconductor Laser

Laser Wavelength

Engraving Laser：455nm±5nm Blue Light
Height Measuring Laser：850nm±5nm Infrared Light

Laser Power

10W±1W，40W±2W

Laser Spot Dimension

10W：0.3mm*0.14mm
40W：0.14mm*0.14mm

Working Tempreture

0℃~35℃

Max Engraving Speed

10W：400mm/s
40W：1000mm/s

Max Cutting Thickness

10W：5mm
40W：15mm(Basswood Plywood)

Laser Safety Class for Laser Module

Class 4

Overall Laser Safety Class

Class 1

Engraving Area

10W：310mm*270mm
40W：310mm*250mm

XY Positioning Accuracy

< 0.3mm

Z Height Measuring Method

Micro Lidar

ZHeight Measuring Accuracy

±0.1nn

Flame Detection

Supported

Temperature Detection

Supported

Door Sensor

Supported

Laser Module Installation Detection

Supported

Safety Key

Included

Ventilation Pipe Adapter Outer Diameter

100mm

Supported Material Type

Wood, rubber, metal sheet, leather, dark acrylic, stone, and more

Cutting Module

Cutting Area	300*285mm
Drawing Area	300*255mm
Supported Pen Diameter	10.5mm-12.5mm
Cutting Mat Type	LightGrip and StrongGrip Cutting Mats
Blade Type	45°*0.35mm
Blade Pressure Range	50gf-600gf
Max Cutting Thickness	0.5mm
Blade and Pen Recognition	Supported
Cutting Mat Type Detection	Supported
Supported Image TYpe	Bitmap and Vector Images
Supported Material Type	Paper, vinyl, leather, and more
